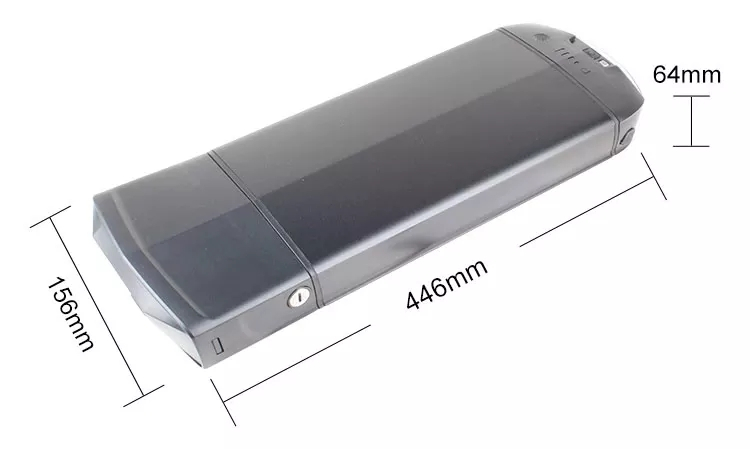

Battery Size:446*64*156mm
Model name: 36 volt

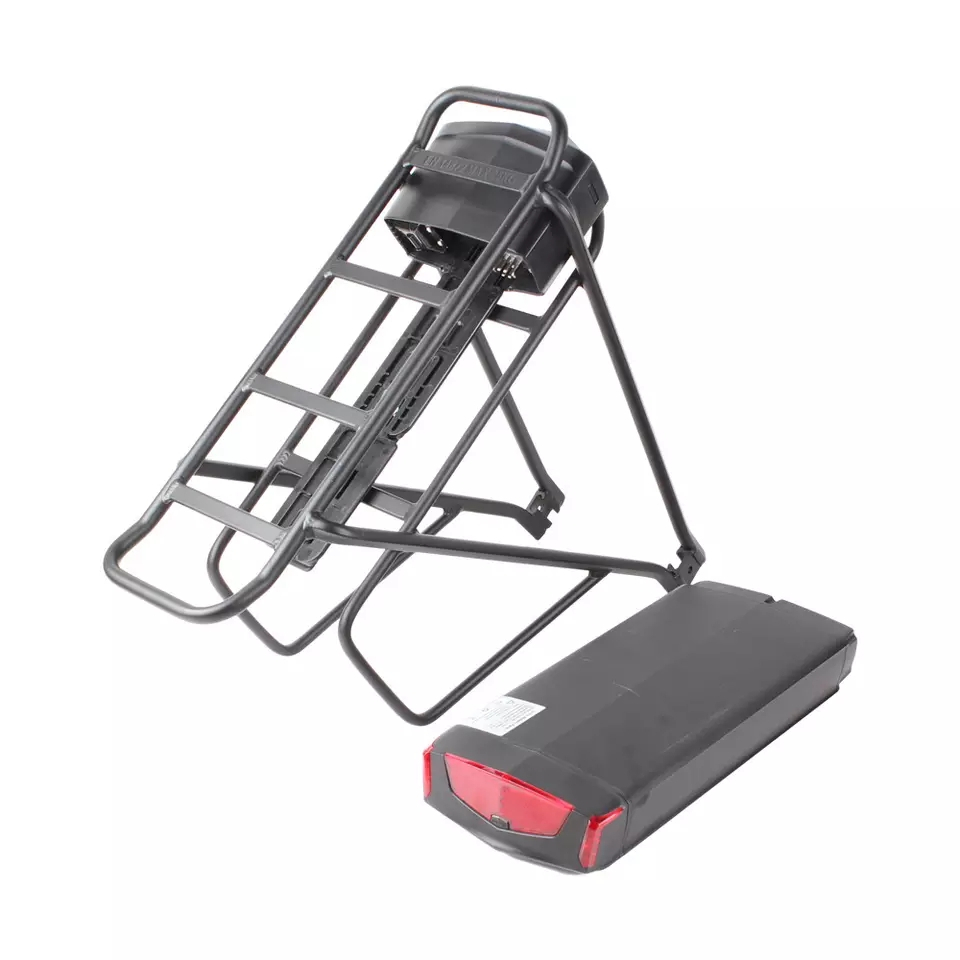

48volt ebike lithium battery with rear rack
Battery
cell type: Lithium-ion 18650
Maximum
cells:40pcs
Cell
Voltage:3.7V/cell
Max capacity:36V 17.5Ah/48V14AH
Fit Motor:250-500W
BMS:Internal BMS
Controller
space:YES
Capable for Motor:250-1000W
Max
cells | 52pcs | ||
Configuration | 10S5P | 13S4P | |
Capacity | 2.2Ah | 36V 11Ah | 48V8.8Ah |
2.6Ah | 36V 13Ah | 48V10.4Ah | |
2.9Ah | 36V 14.5Ah | 48V11.6Ah | |
3.2Ah | 36V 16Ah | 48V12.8Ah | |
3.5Ah | 36V 17.5Ah | 48V14Ah | |
Parameters
for battery shell

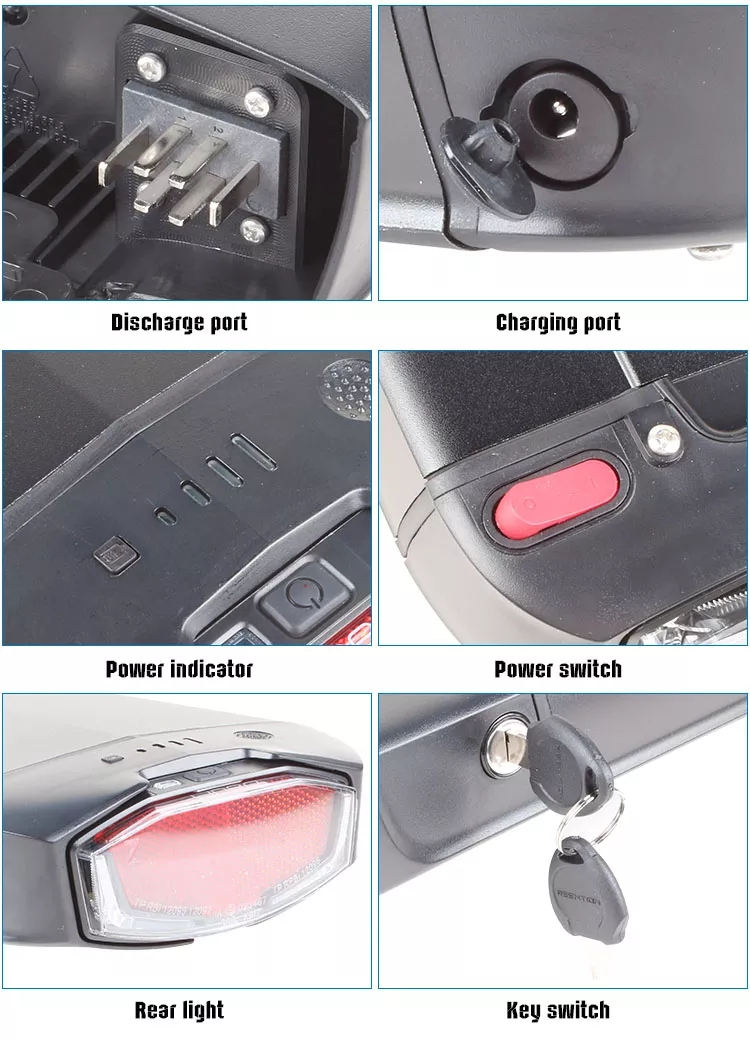

Charging port | 3Pin |
Discharge
port | 6pin |
USB port | NO |
Power switch | YES |
Controller
space | Yes |
L·W·H (mm) | 438x156x64 |
