Battery Size::110*75*387mm
Model:Downtube: 36V 48V Sliver Fish 70pcs 18650 Cell

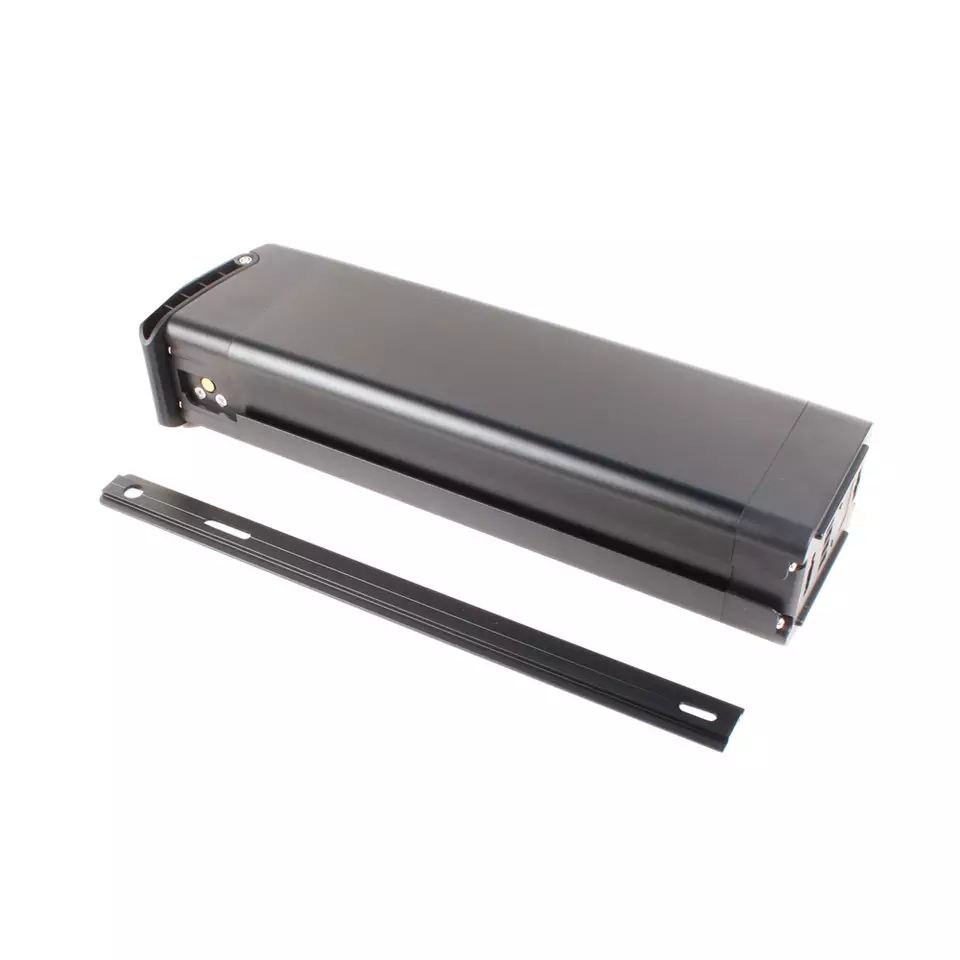

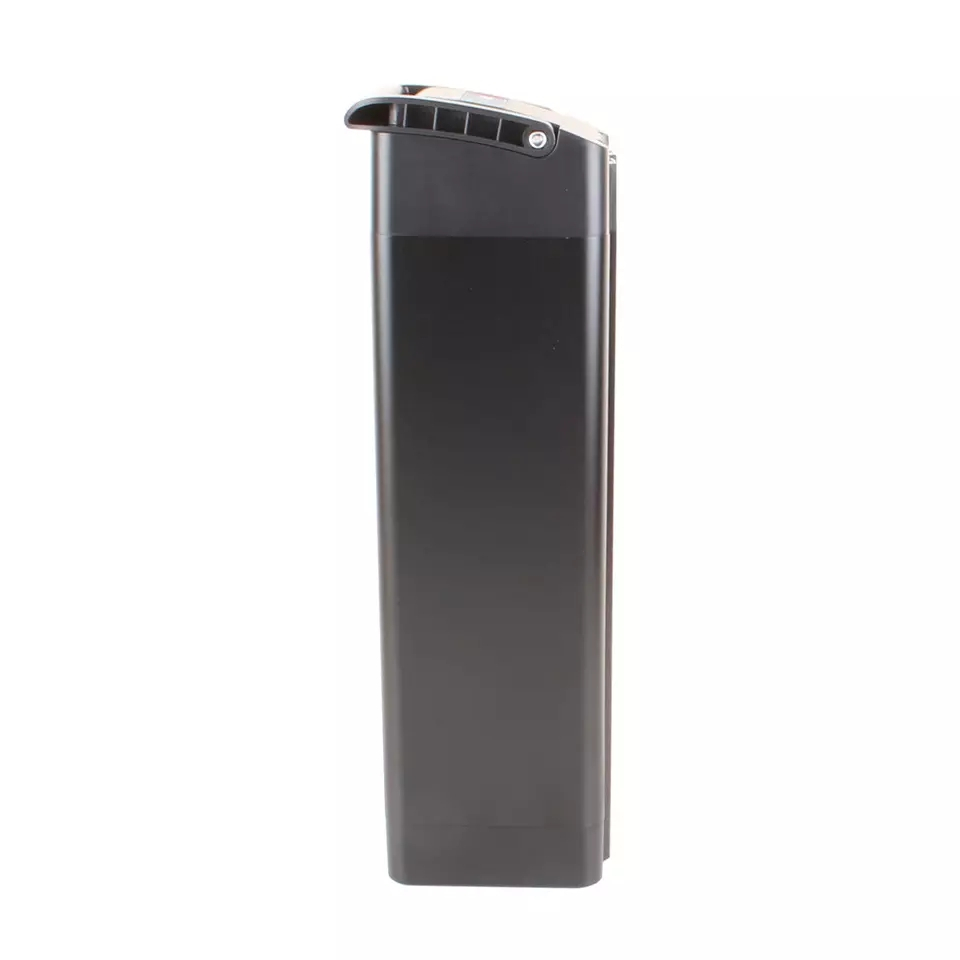

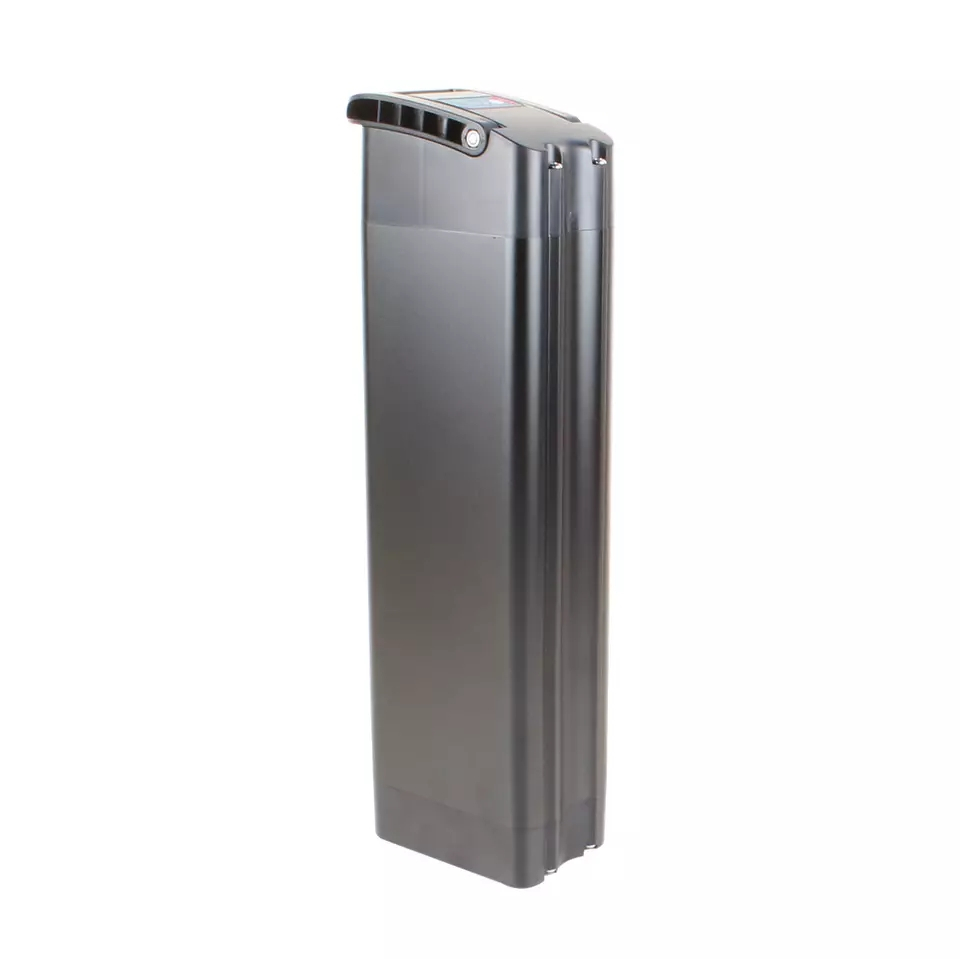

Electric Bicycle Lithium Battery
Battery cell type: Lithium-ion 18650
Maximum cells:70pcs
Cell Voltage:3.7V/cell
Max capacity:36V 24.5Ah / 48V 17.5Ah
Fit Motor:250-1500W
BMS:Internal BMS
Cycle life:600-800 times
Controller space:NO
Capable for Motor:
36V 250/350/500W
48V 350/500/750/1000/1200/1500W
Max
cells | 70pcs | ||
Configuration | 10S7P | 13S5P | |
Capacity | 2.2Ah | 36V 15.4Ah | 48V11Ah |
2.6Ah | 36V 18.2Ah | 48V13Ah | |
2.9Ah | 36V 20.3Ah | 48V14.5Ah | |
3.2Ah | 36V 22.4Ah | 48V16Ah | |
3.5Ah | 36V 24.5Ah | 48V17.5Ah | |
Parameters
for battery shell
Charging port | 3Pin X LR |

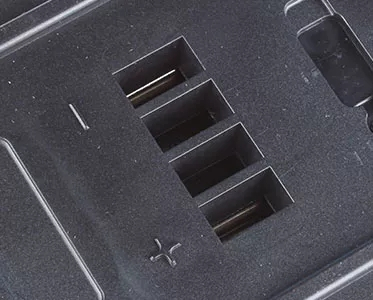

Discharge
port | 2Pin |

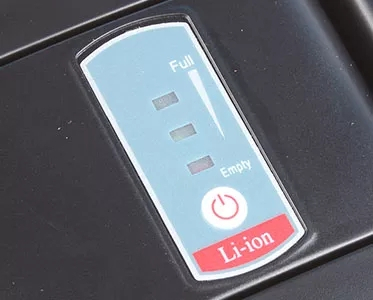

LED indicator | 3 LED lights |
USB port | NO |

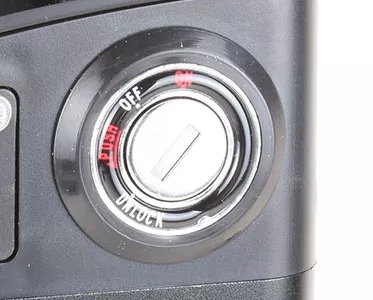

Power switch | YES |
Controller
space | NO |
L·W·H (mm) | 110x75x387 |
