Battery
Size:368*90*141mm

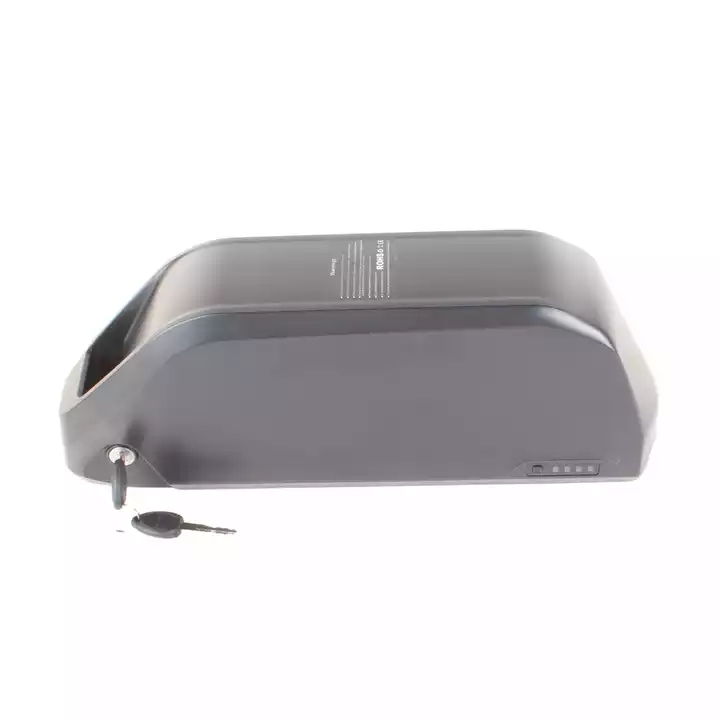

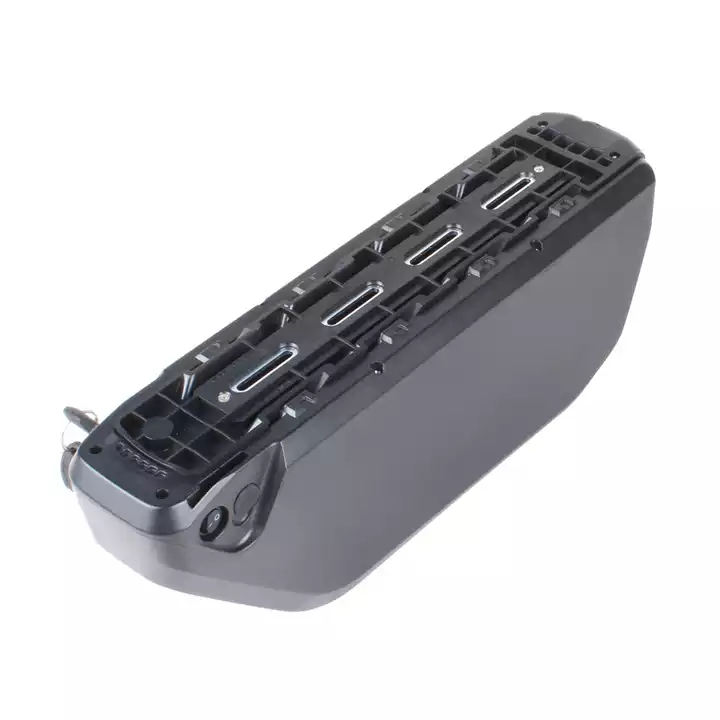

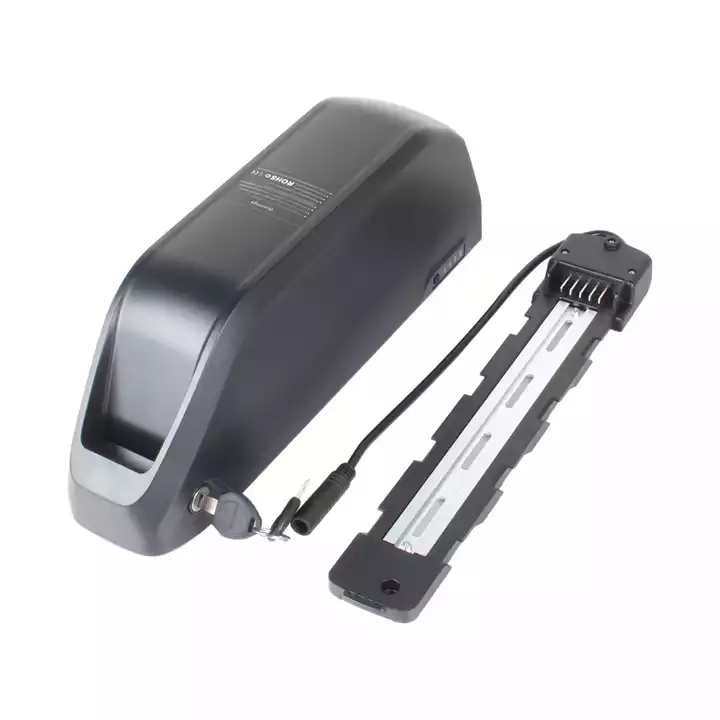

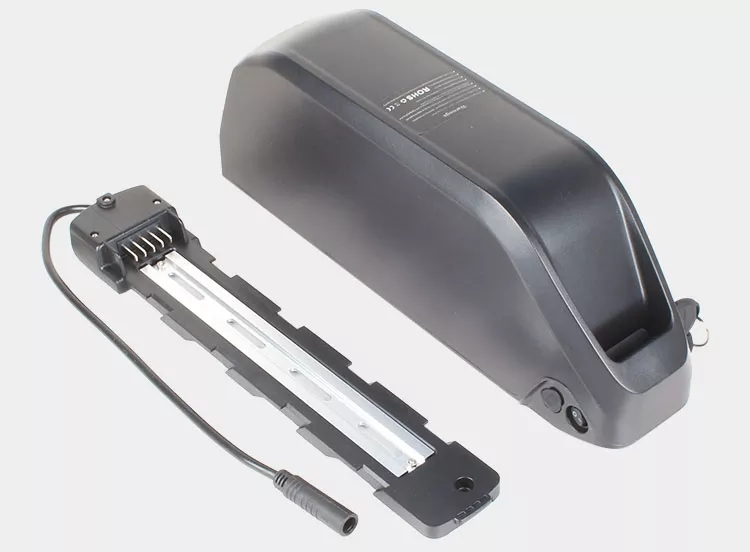

Model: Downtube E-bike Battery
Battery
cell type: Lithium-ion 18650
Maximum
cells:84/91pcs
Cell
Voltage:3.6V/cell
Max capacity:36V 31.5Ah / 48V 24.5Ah / 52V 21Ah
Fit Motor:250-2000W
BMS:Internal BMS
Controller
space:YES
Capable for Motor:
36V 250/350/500W
48V 350/500/750/1000/1200/1500/2000W
Max
cells | 91pcs | |||
Configuration | 10S9P | 13S7P | 14S6P | |
Capacity | 2.2Ah | 36V 19.8Ah | 48V15.4Ah | 52v13.2Ah |
2.6Ah | 36V 23.4Ah | 48V18.2Ah | 52V15.6Ah | |
2.9Ah | 36V 26.1Ah | 48V20.3Ah | 52V17.4Ah | |
3.2Ah | 36V 28.8Ah | 48V22.4Ah | 52V19.2Ah | |
3.5Ah | 36V 31.5Ah | 48V24.5Ah | 52V21Ah | |
Parameters
for battery shell
Model | A | B | ||
Battery cell
type | 18650 | |||
Max cells | 84pcs | 91pcs | ||

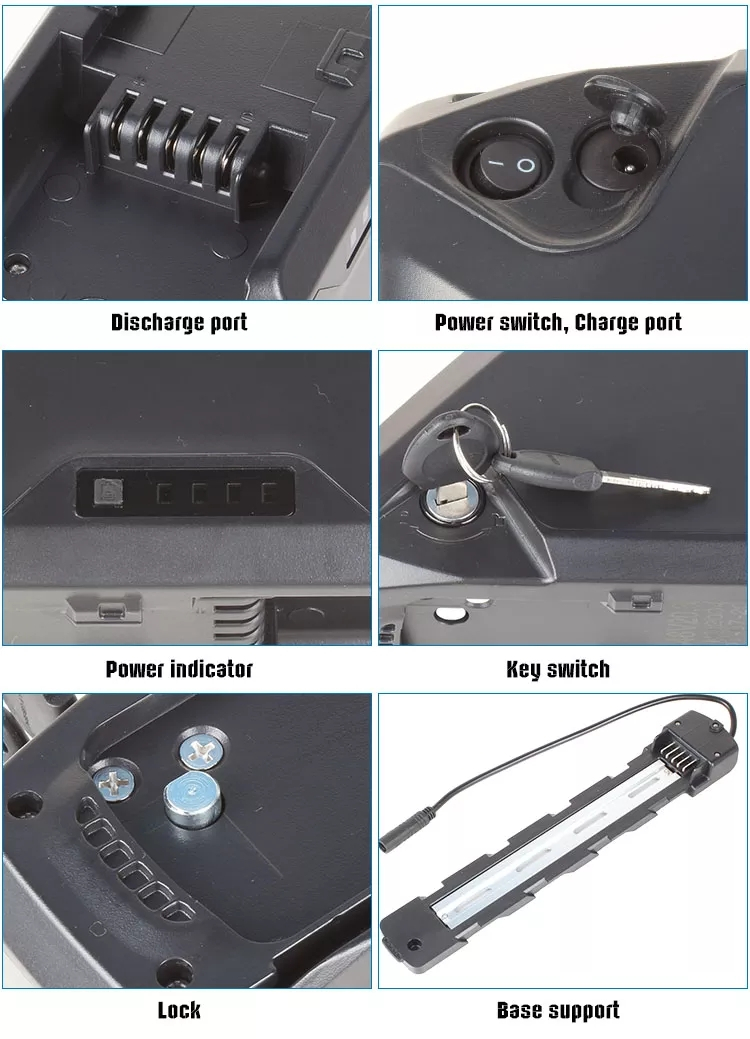

Charging port | DC2.1 | |||
Discharge
port | 4Pin | 5Pin | ||
LED indicator | 4 LED Lights | |||
USB port | NO | |||
Power switch | YES | |||
Controller
space | YES | NO | ||
L·W·H (mm) | 368*90*141mm | |||
