SPECIFICATIONS
• Apply to electric bicycle rear and front wheel with 100-142mm frame
dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless DC hub motor, 48V / 52V / 60V available, top speed
from 38 km/h to 42 km/h, meets differents requirements on maximum speed
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike

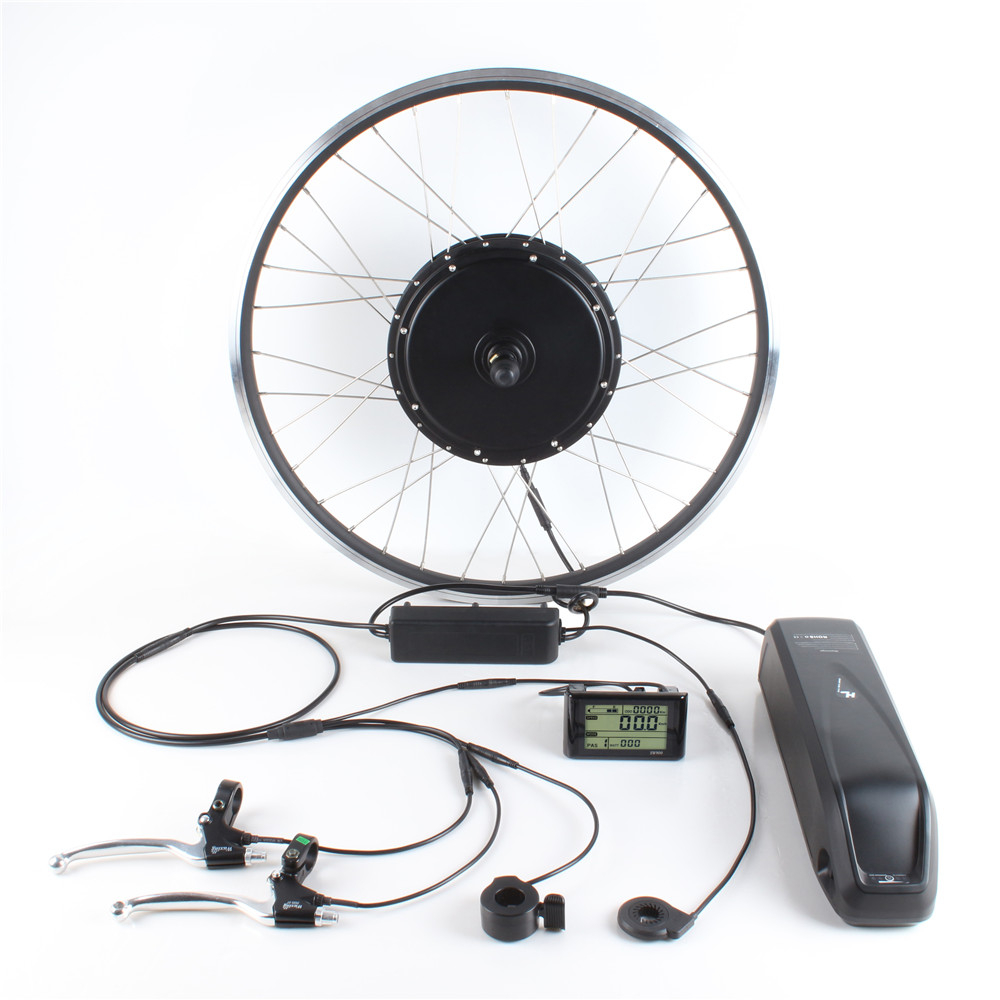

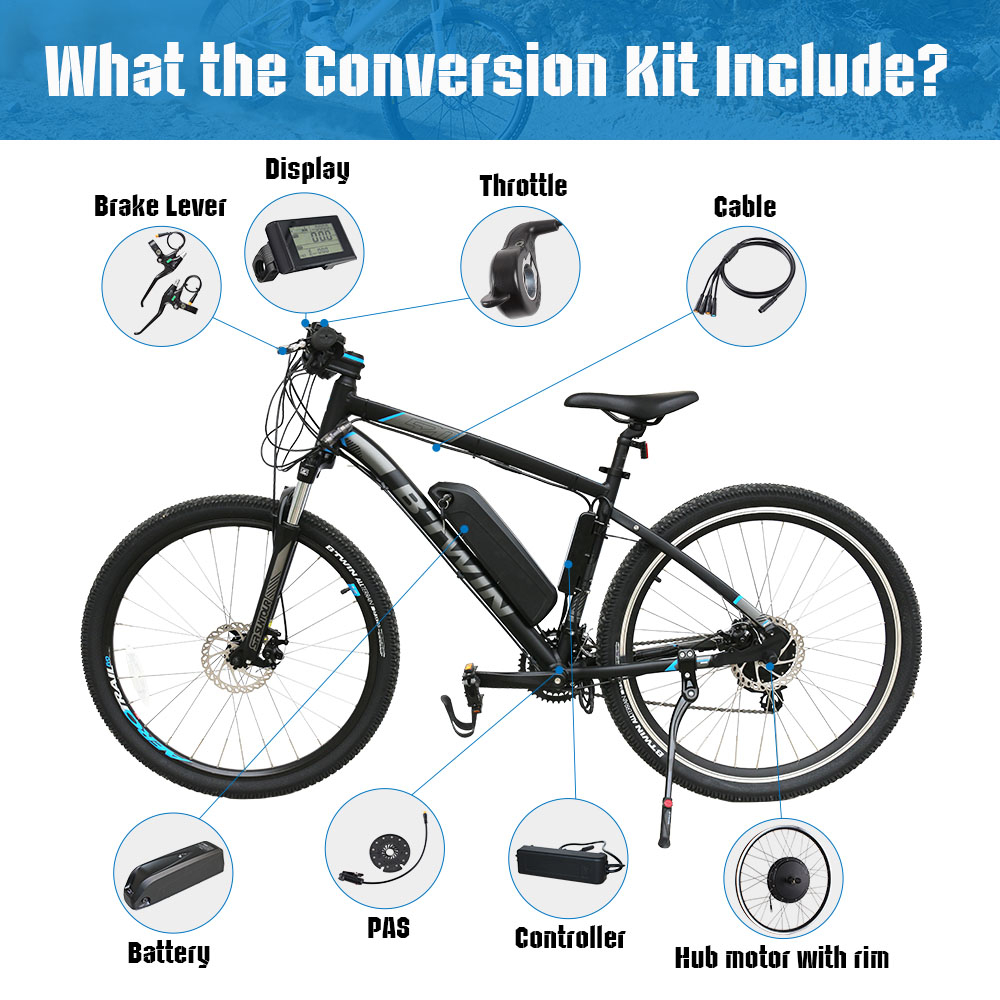

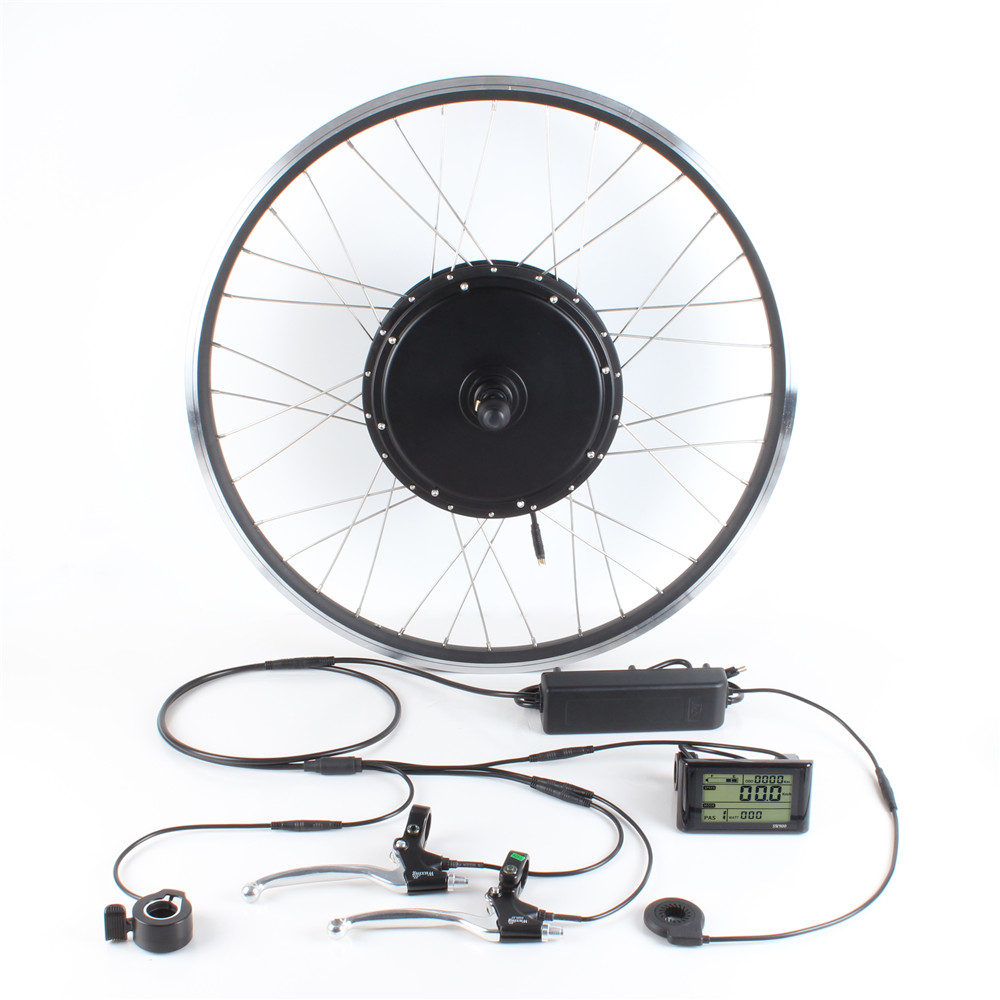

1.What the electric bike kit include?

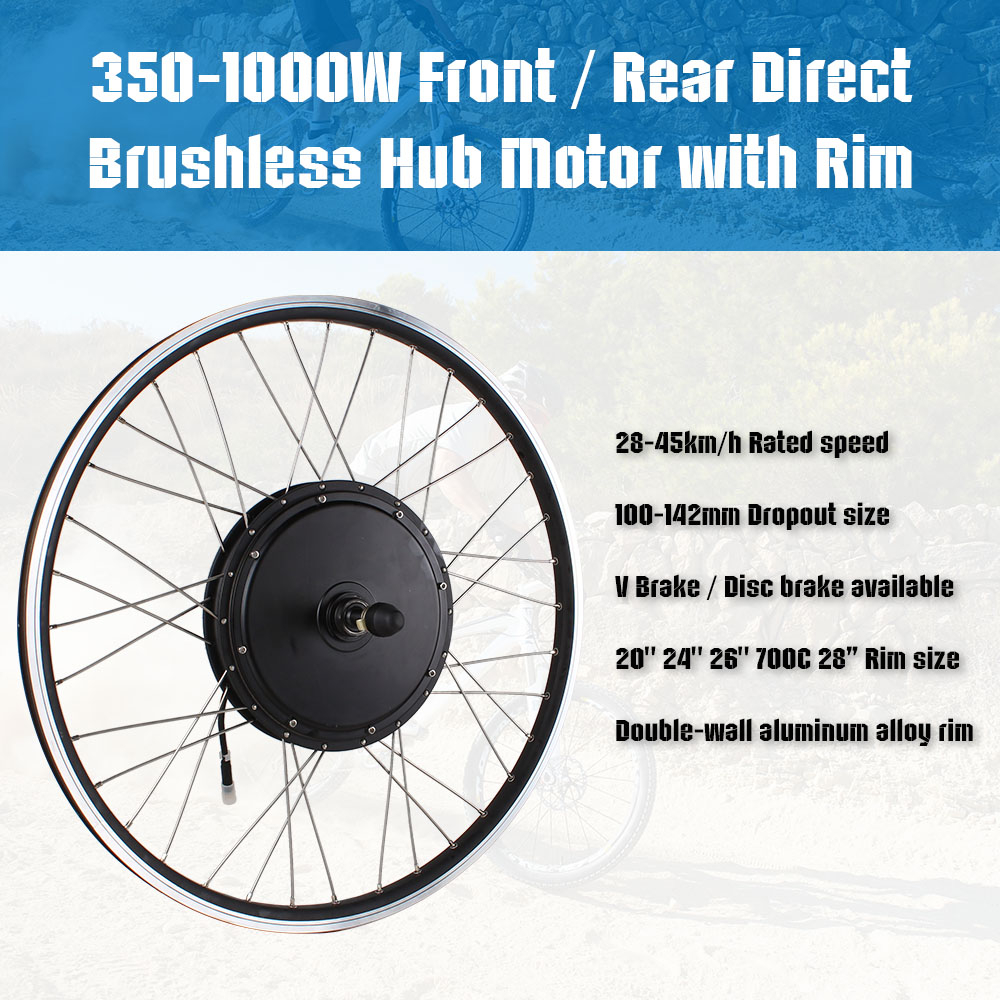

1.1. 750w Brushless Direct Hub Motor with Rim (20" 24" 26"
27.5" 700C 28" 29")

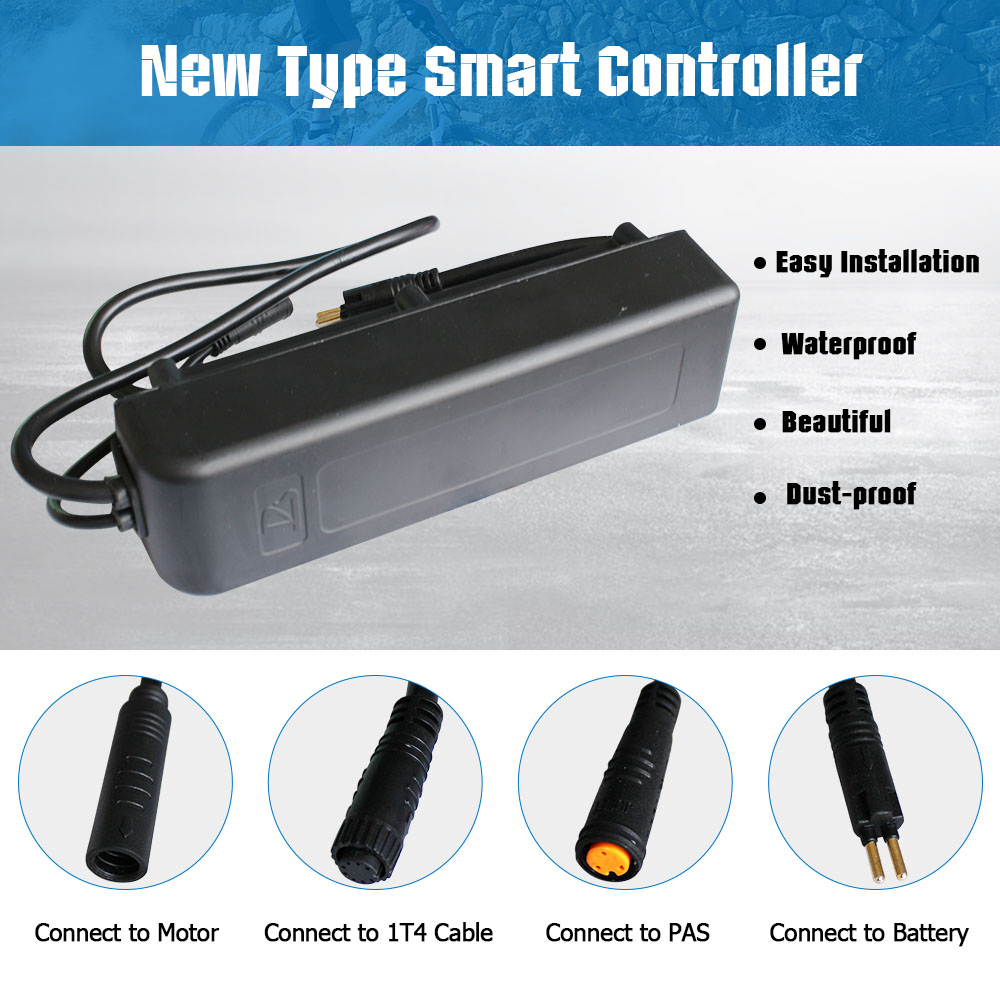

1.2.* New design smart controller
1.3.Thumb Throttle (Twist Throttle for optional)
1.4. SW900 LCD display(color display for optional)
1.5.Wuxing Brand Aluminum Alloy Brake Levers(brake sensor for optional)
1.6. 12 Magnets Pedal Assistant Sensor
1 .7.Connecting Cable

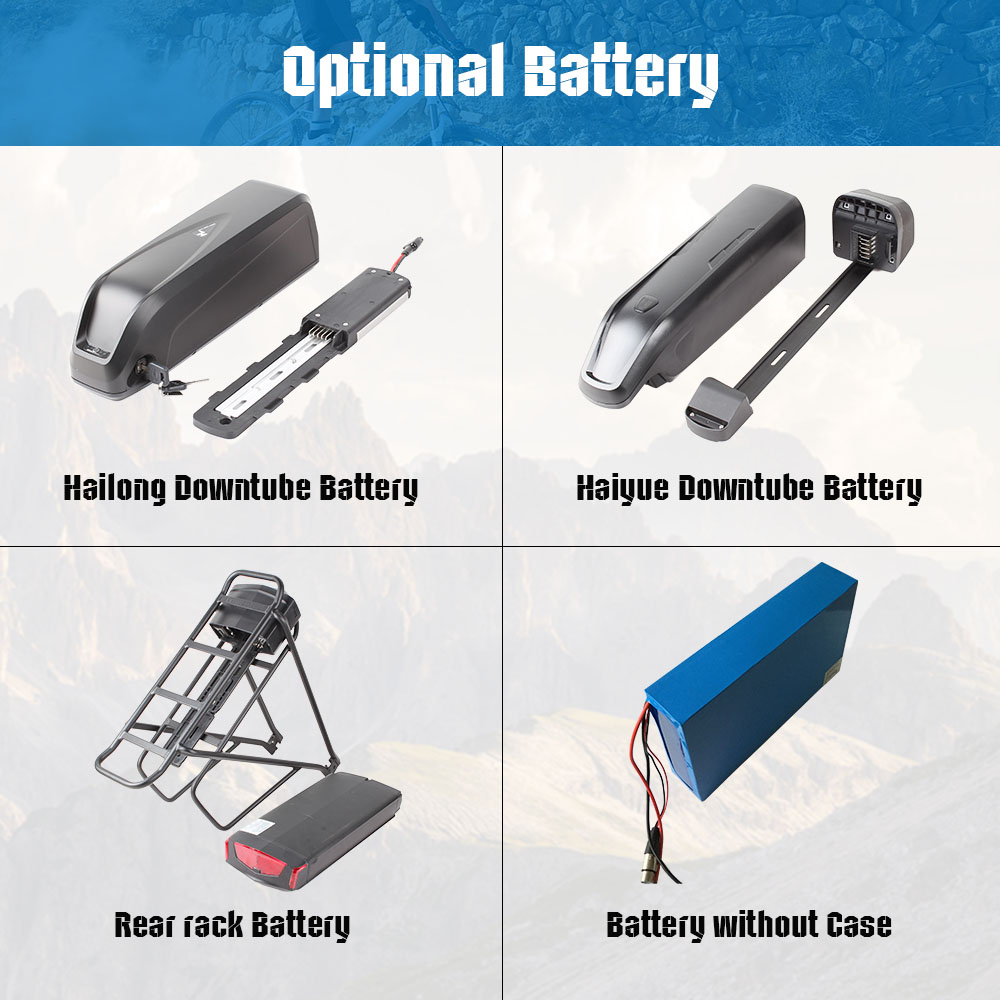

1 .8.Lithium Battery (Optional)
2. Hub motor kit feature
• Apply to electric bicycle rear and front wheel with 100-142mm frame
dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless DC hub motor, 48V / 52V / 60V available, top speed
from 38 km/h to 42 km/h, meets differents requirements on maximum speed
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike
3. Motor parameter
Rated voltage | 36V48V |
Rated power | 750w |
Motor type | Brushless Direct hub Motor |
Controller | Brushless smart controller |
Dropout size | 100-142mm |
Wheel size | 20’ 24'' 26" 27.5" 700C
28" 29‘’ |
Rated Speed | 30-40km/h |
Rated Efficiency | >=83% |
Reduction Ratio | 1:4.4 |
Waterproof Grade | IP54 |
Noise (db) | < 50 |
Optional parts | Freewheel, Tyre, Head light, Disc brake, etc |
