• Apply to electric bicycle rear
and front wheel with 100-135mm frame dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless geared hub motor, 36V or 48V available, top speed from
35 km/h to 40 km/h.
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike

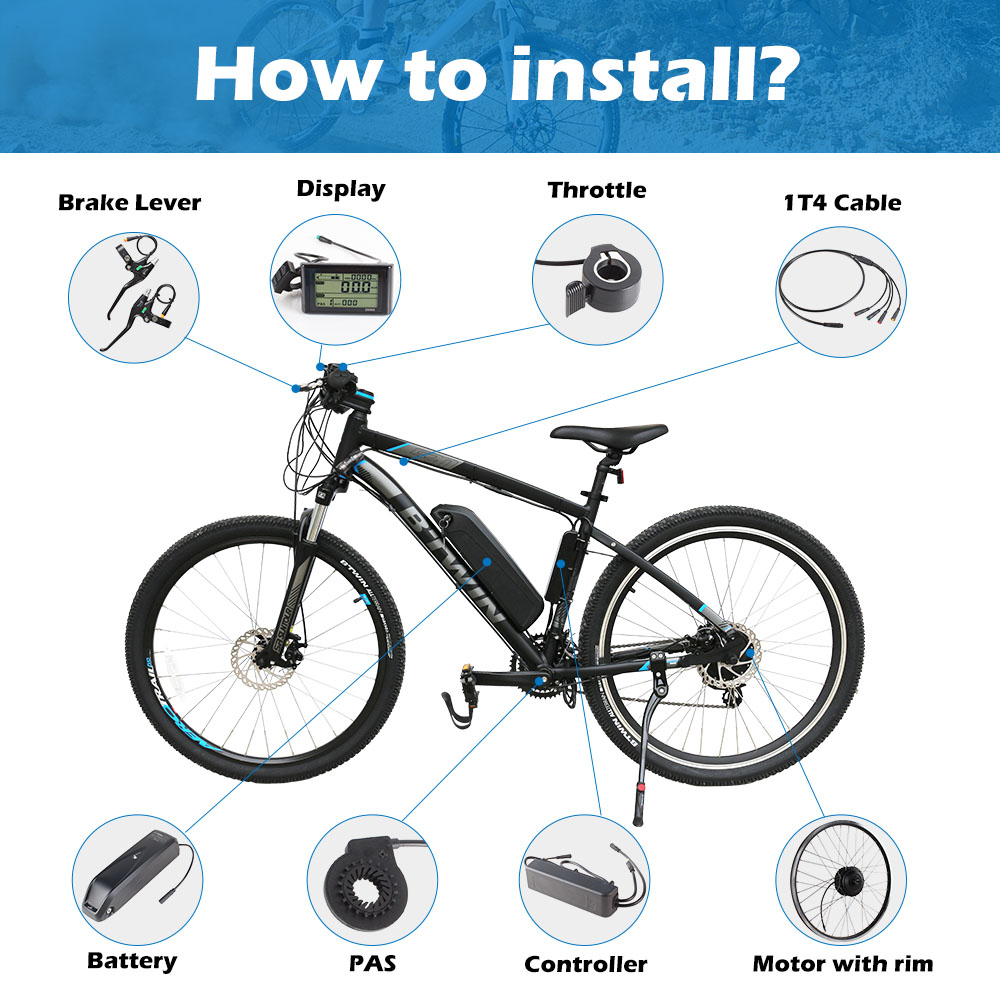

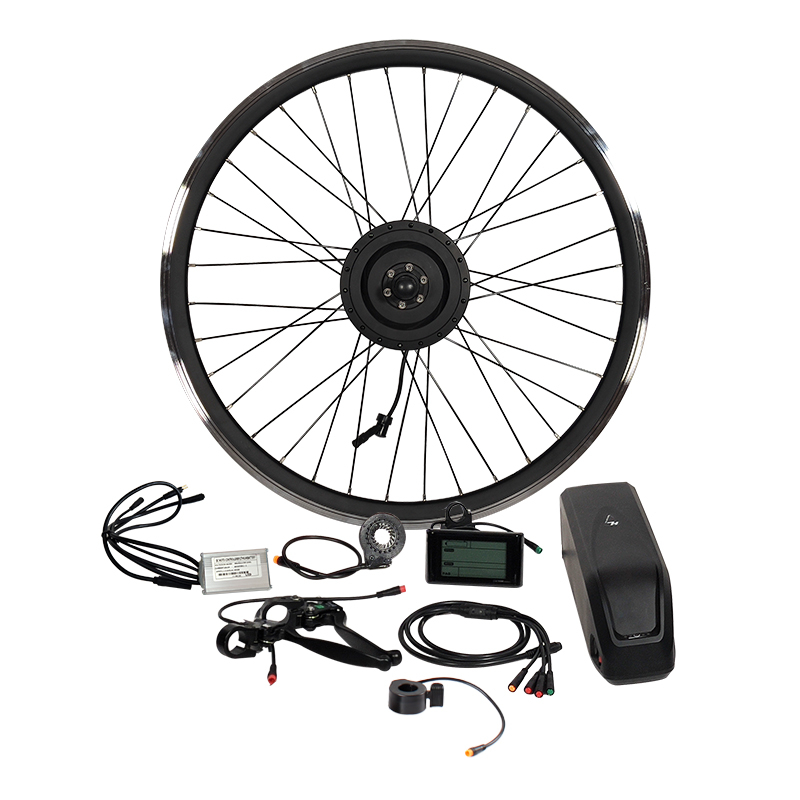

1.What the electric bike kit include?
1.1. 500w

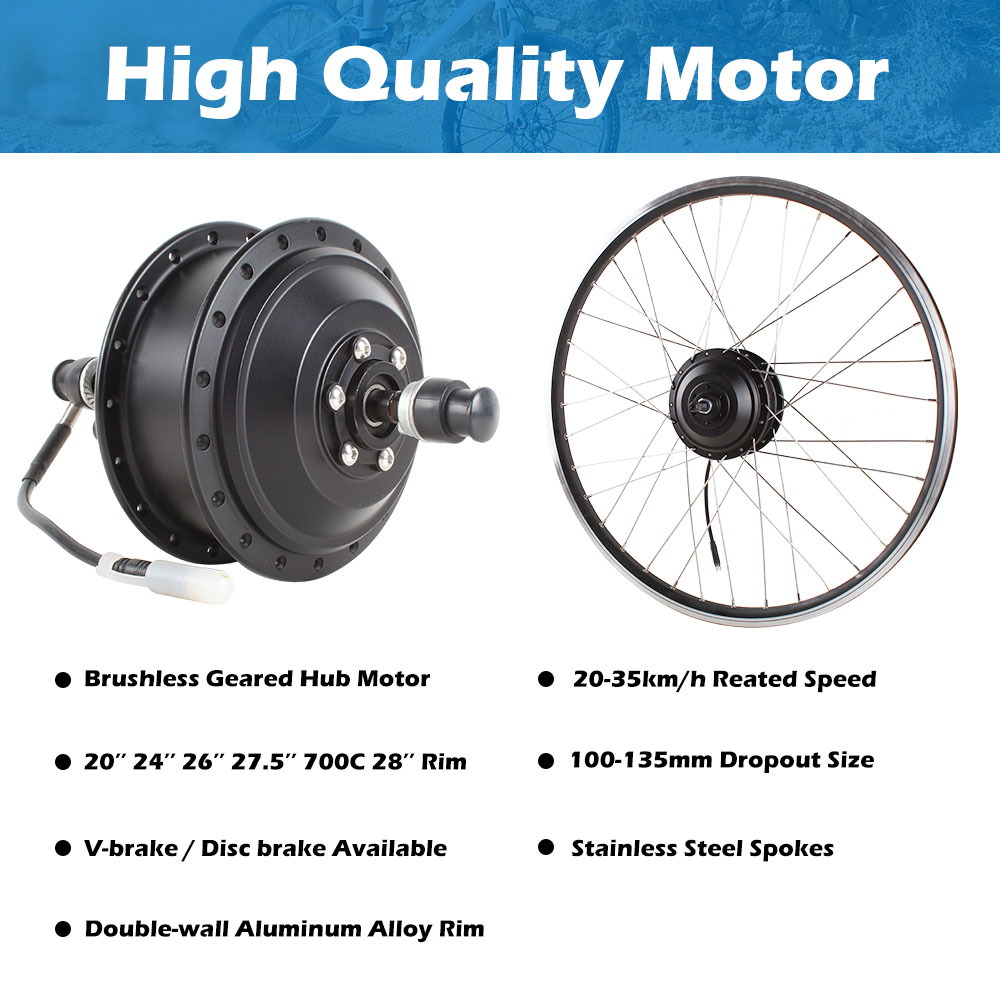

Brushless Geared Hub Motor with Rim (16'' 20" 24" 26" 700C
28" 29")

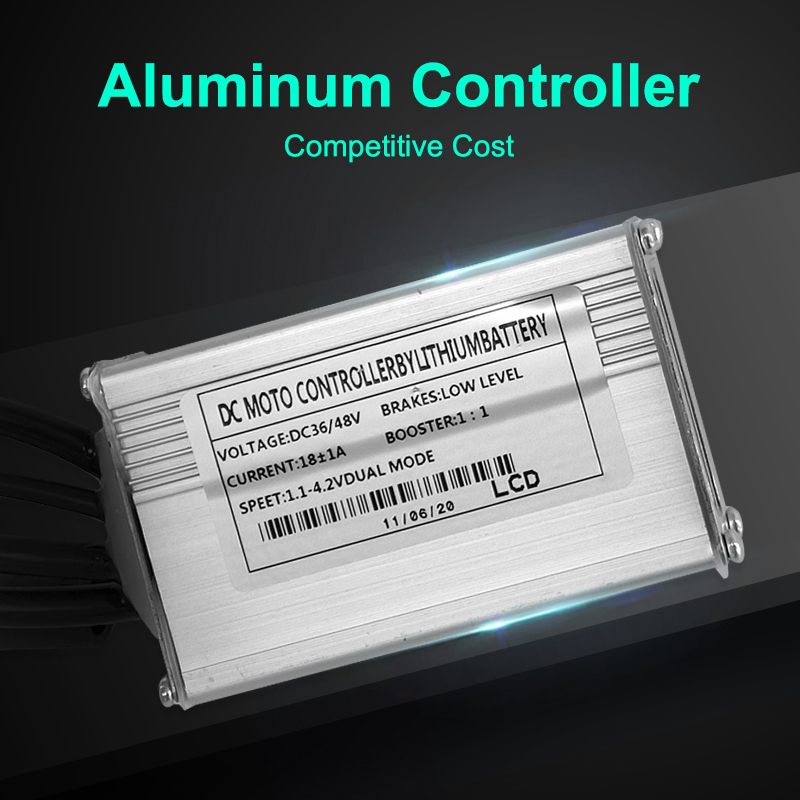

1.2. Aluminium case controller
1.3.* Thumb Throttle (Twist Throttle for optional）
1.4. SW900 LCD display(color display for optional)
1.5.Wuxing Brand Aluminum Alloy Brake Levers(brake sensor for optional)
1.6.12 Magnets Pedal Assistant Sensor

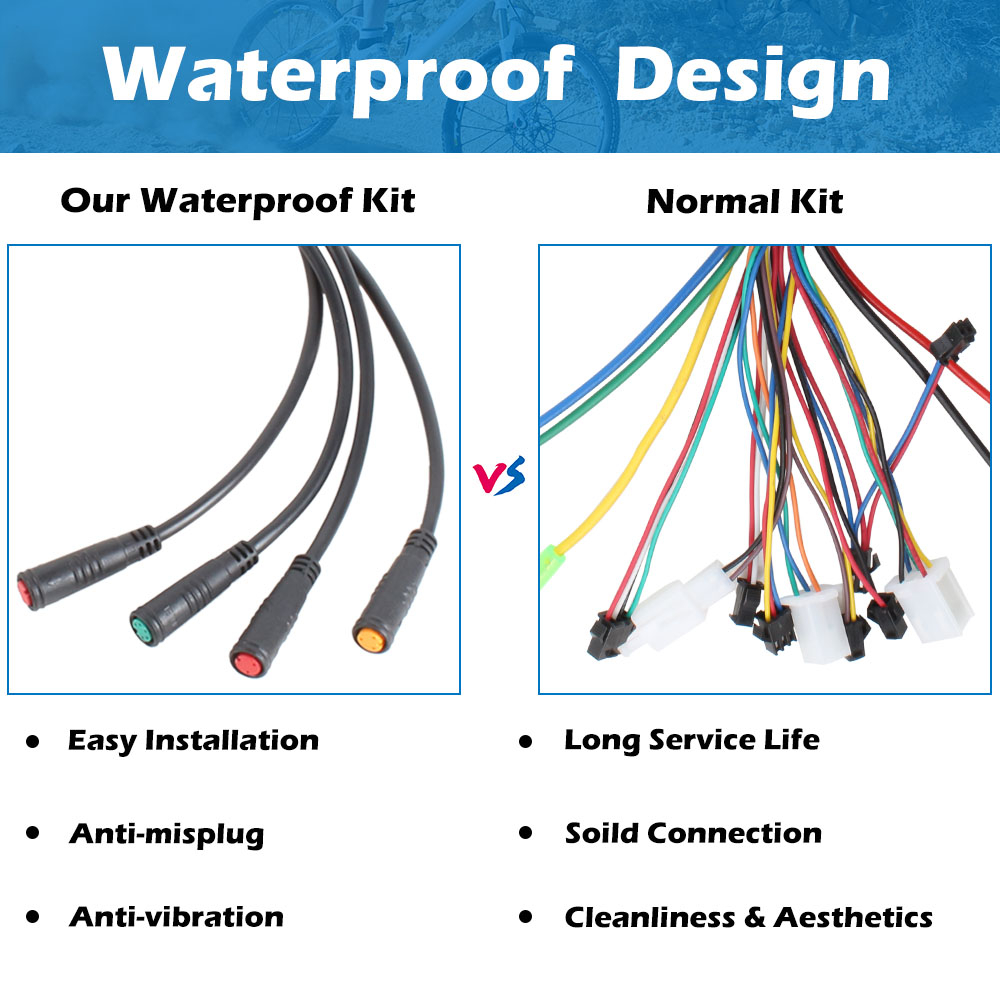

1.7.Connecting Cable
1.8.Lithium Battery (Optional)
2. Hub motor kit feature
• Apply to electric bicycle rear and front wheel with 100-135mm frame dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C
bike
• High quality brushless geared hub motor, 36V or 48V available, top speed from
35 km/h to 40 km/h.
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike
3. Motor parameter
| Rated voltage | 36/48V |
| Rated power | 500w |
| Motor type | Brushless Geared hub Motor |
| Controller | Brushless Aluminum case Controller |
| Dropout size | 100-135mm |
| Wheel size | 20",24"26" 27.5" 700C 28" 29‘’ |
| Rated Speed | 32-35m/h |
| Rated Efficiency | >=83% |
| Reduction Ratio | 1:4.4 |
| Waterproof Grade | IP54 |
| Noise (db) | < 50 |

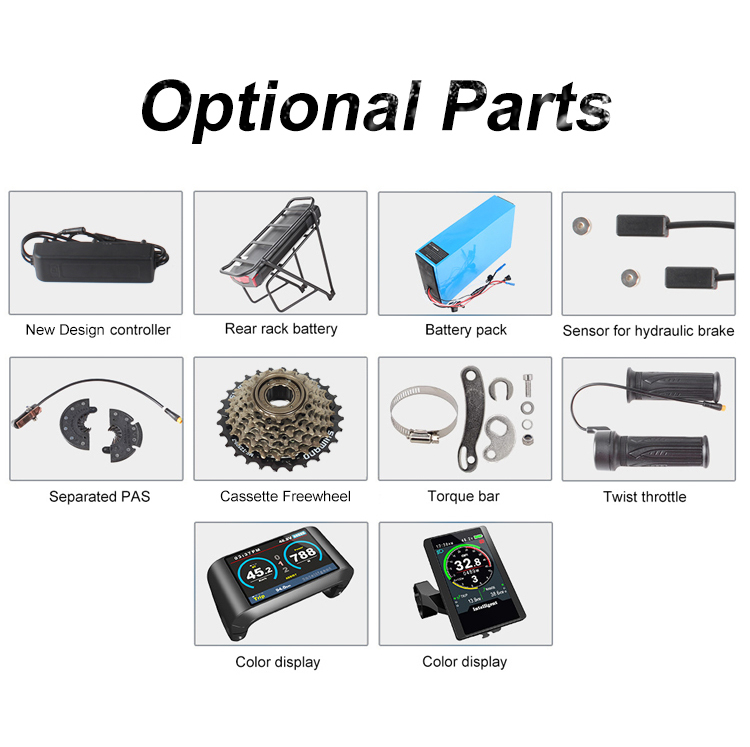

| Optional parts | Freewheel, Tyre, Disc brake, etc |
