• Apply to electric bicycle rear
and front wheel with 100-142mm frame dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless DC hub motor, 36V / 48V available, top speed from 35
km/h to 40 km/h, meets differents requirements on maximum speed
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike
Motor power:500w
Rim size:20"/24"/26"/27.5"/28"/700c/29"
Motor type:Brushless direct hub motor
Controller:22A aluminium case controller
Dropout size:100mm-142mm
Wheel size:20"-29"
Rated speed:32km/h

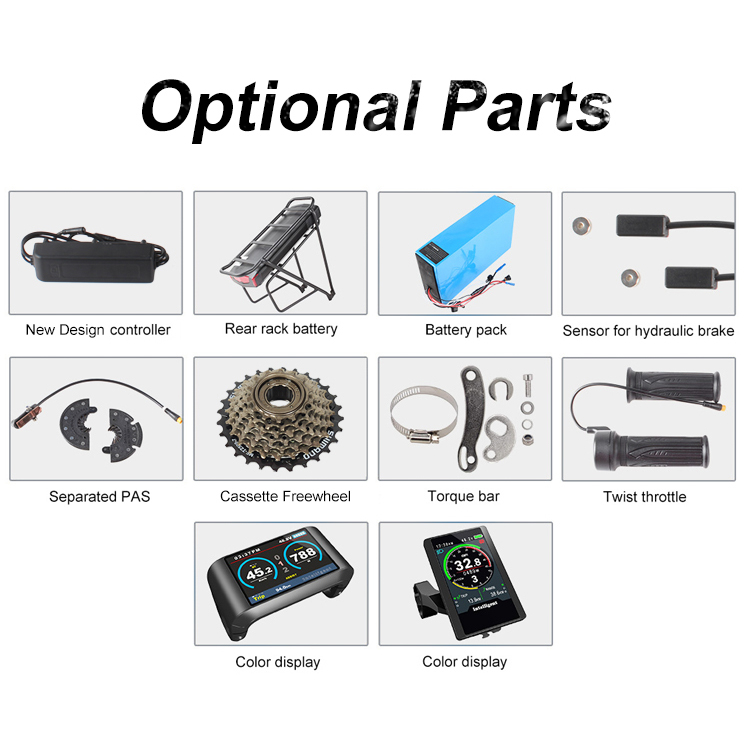

Optional parts:Freewheel, Tyre, Head light, Disc brake, etc

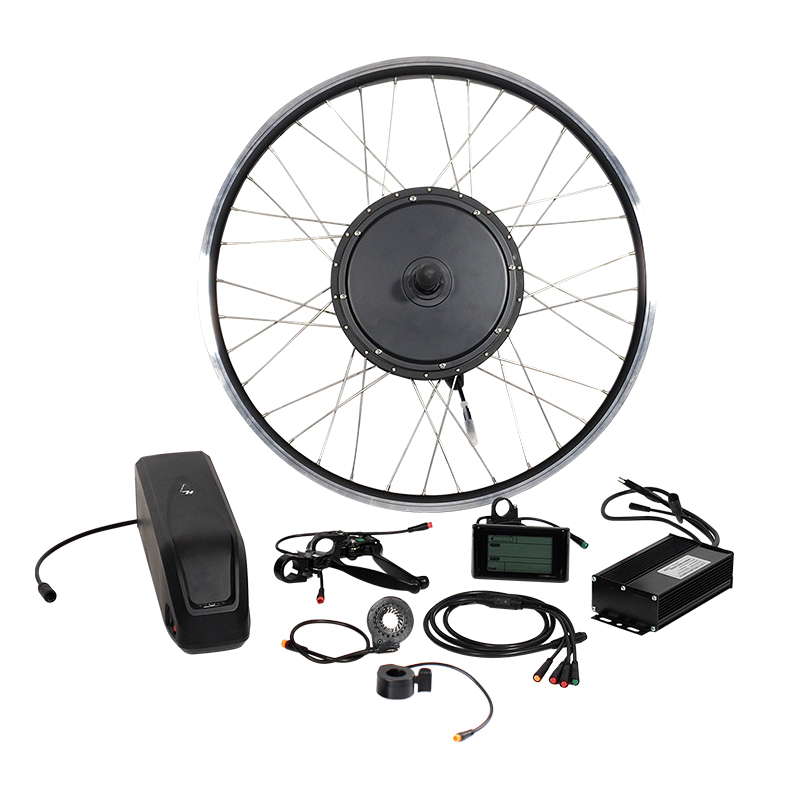

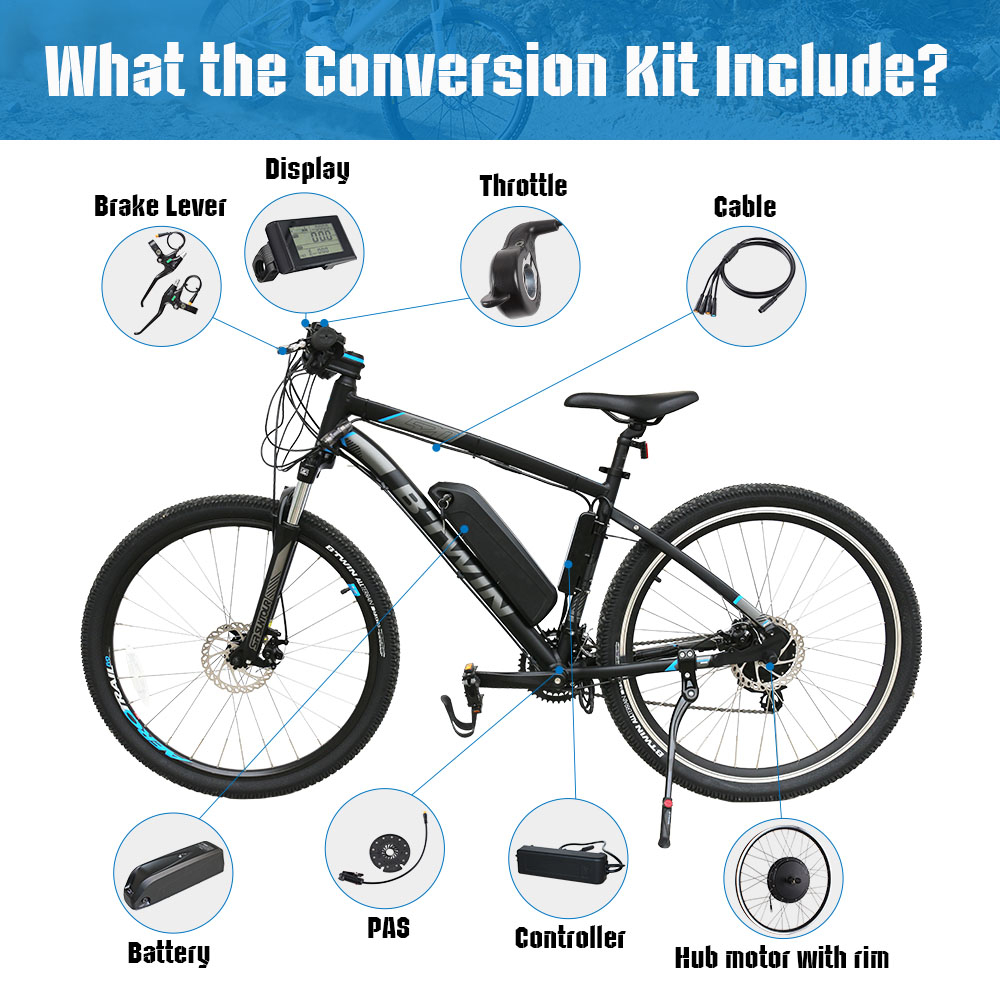

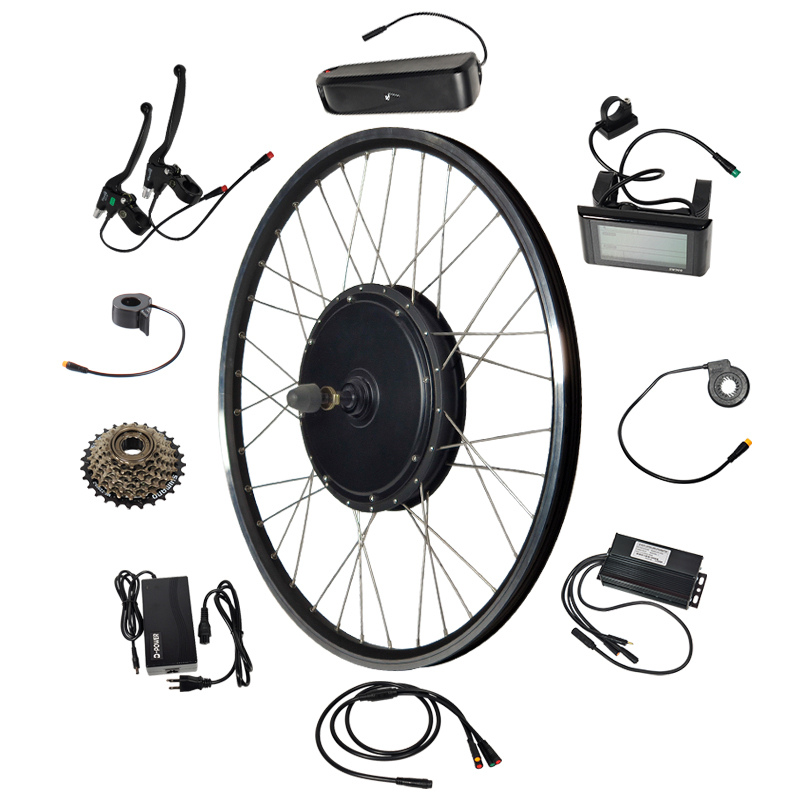

1. What the electric bike kit include?

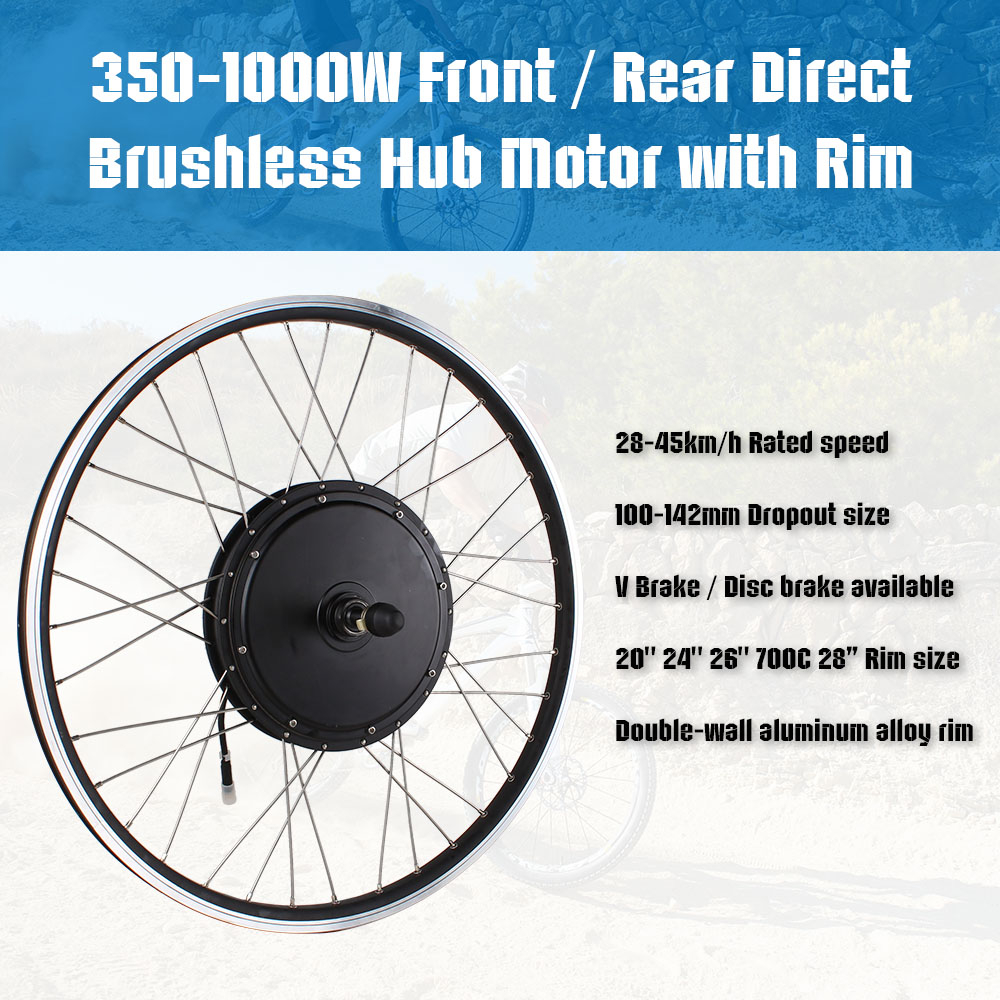

1.1.500w Brushless Direct Hub Motor with Rim (20"
24" 26" 27.5" 700C 28" 29")

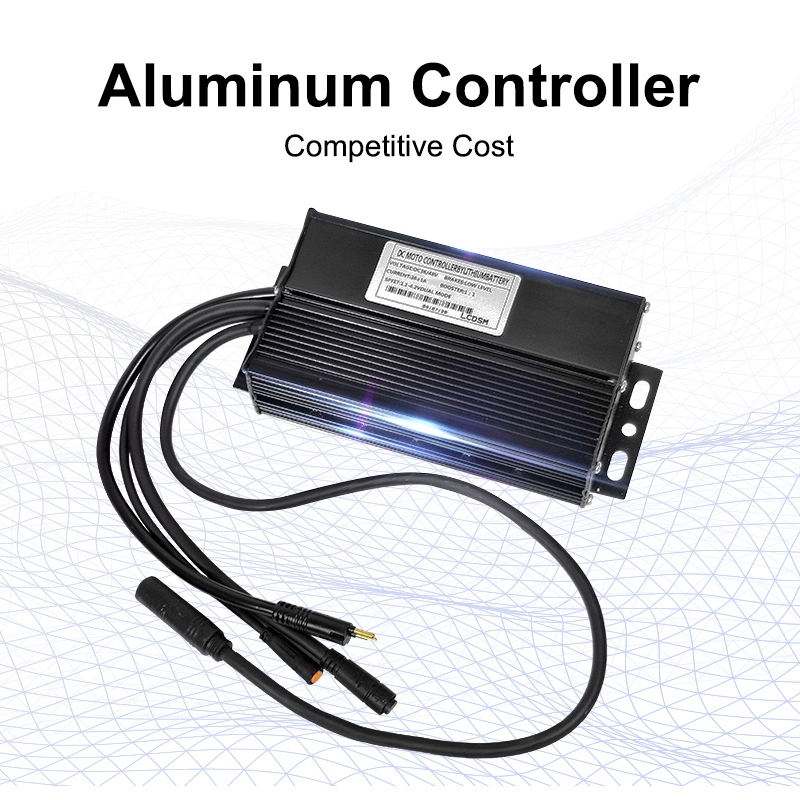

1 2. Aluminium case controller
1.3.Thumb Throttle (Twist Throttle for optional）
1.4.SW900 LCD display(color display for optional)
1.5. Wuxing Brand Aluminum Alloy Brake Levers(brake sensor for optional)
1.6.12 Magnets Pedal Assistant Sensor
1.7.Connecting Cable
1.8 Lithium Battery (Optional)
2. Hub motor kit feature
• Apply to electric
bicycle rear and front wheel with 100-142mm frame dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless DC hub motor, 36V / 48V available, top speed from 35
km/h to 40 km/h, meets differents requirements on maximum speed
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike
3. Motor parameter
| Rated voltage | 36V48V | ||
| Rated power | 500w | ||
| Motor type | Brushless Directed hub Motor | ||
| Controller | Brushless Smart Controller | ||
| Dropout size | 100-142mm | ||
| Wheel size | 20'' 24'' 26" 27.5" 700C 28" 29‘’ | ||
| Rated Speed | 30-32km/h | ||
| Rated Efficiency | >=83% | ||
| Reduction Ratio | 1:4.4 | ||
| Waterproof Grade | IP54 | ||
| Noise (db) | < 50 | ||
| Optional parts | Freewheel, Tyre, Head light, Disc brake, etc |
