SPECIFICATIONS
Apply to
electric bicycle rear and front wheel with 100-135mm frame dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless geared hub motor, 48V available, top speed from 20
km/h to 35 km/h.
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike

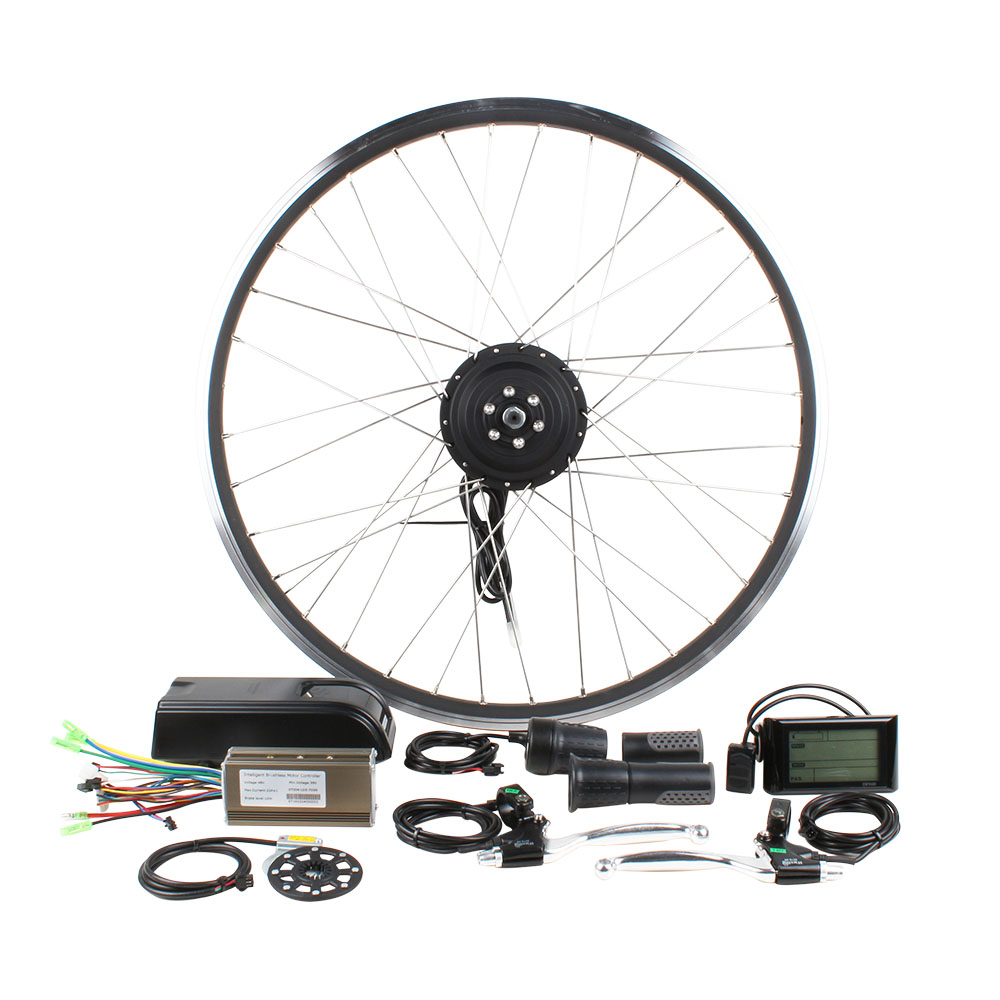

1.What the
electric bike kit include?
1.1. 500w Brushless
Geared Hub Motor with Rim (16'' 20" 24" 26" 700C 28"
29")
1,2. New design smart controller

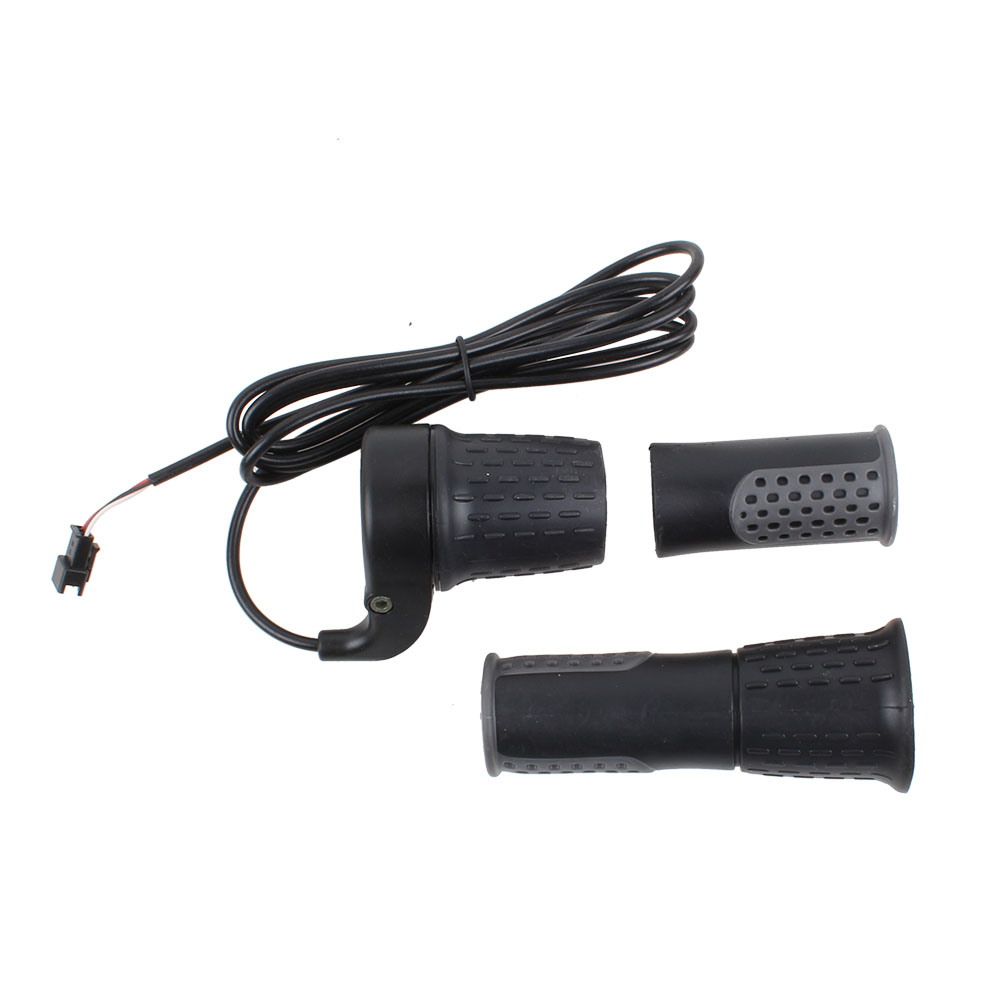

1.3. Thumb Throttle (Twist Throttle for optional)

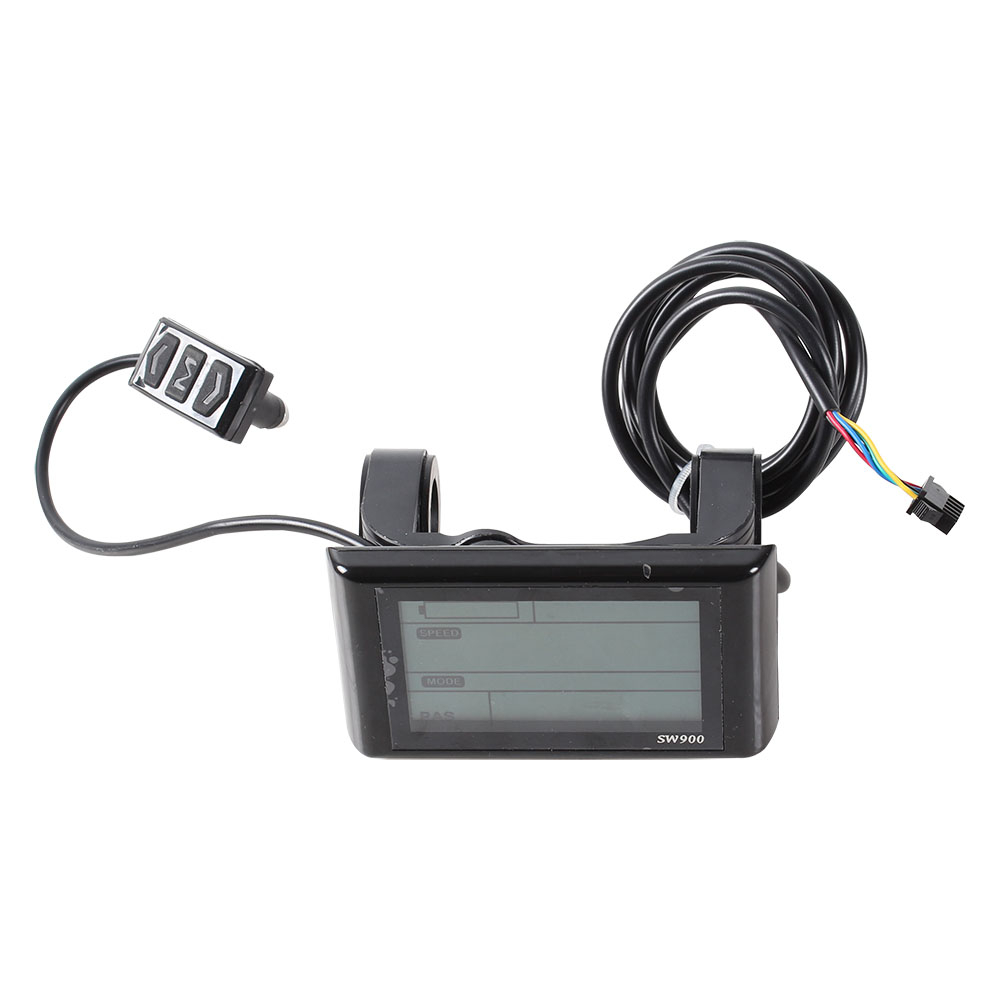

1.4. SW900 LCD display(color display for optional)
1.5. Wuxing Brand Aluminum Alloy Brake Levers(brake sensor for optional)

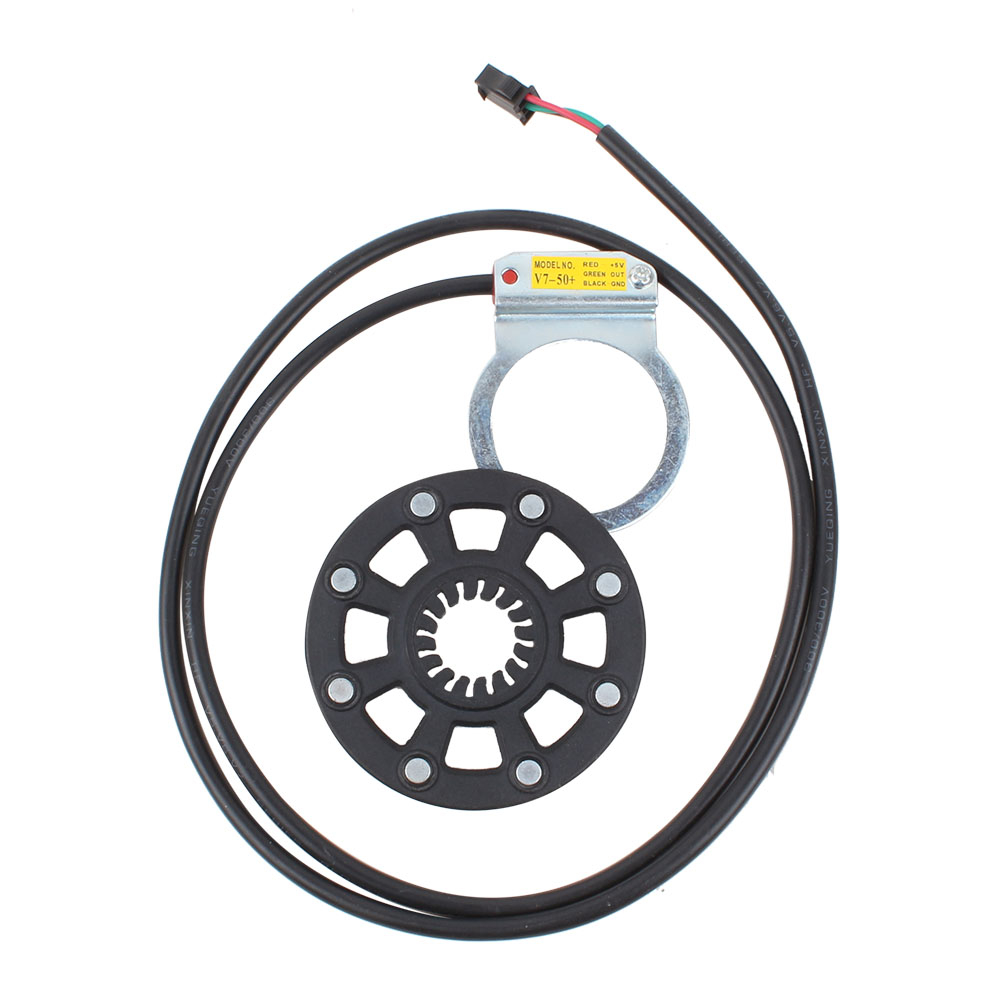

1.6. 12 Magnets Pedal Assistant Sensor
1 .7.Connecting Cable
1 .8.Lithium Battery (Optional)
2. Hub motor kit
feature
• Apply to
electric bicycle rear and front wheel with 100-135mm frame dropput
• Suitable for
20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless geared hub motor, 48v available, top speed from 20
km/h to 35 km/h.
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike
3. Motor
parameter
Rated voltage | 36V48V |
Rated power | 500w |
Motor type | Brushless Geard hub Motor |
Controller | Brushless Smart Controller |
Dropout size | 100-135mm |
Wheel size | 16’20”24'' 26" 27.5"
700C 28" 29‘’ |
Rated Speed | 20-35km/h |
Rated Efficiency | >=83% |
Reduction Ratio | 1:4.4 |
Waterproof Grade | IP54 |
Noise (db) | < 50 |
Optional parts | Freewheel, Tyre, Head light, Disc brake, etc |
