SPECIFICATIONS
• Apply to electric bicycle
rear and front wheel with 100-135mm frame dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C
bike
• High quality brushless geared hub motor, 24V or 36V
available, top speed from 20 km/h to 25 km/h.
• SW900 LCD display to show battery power, time, speed,
mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling
while driving electric bike

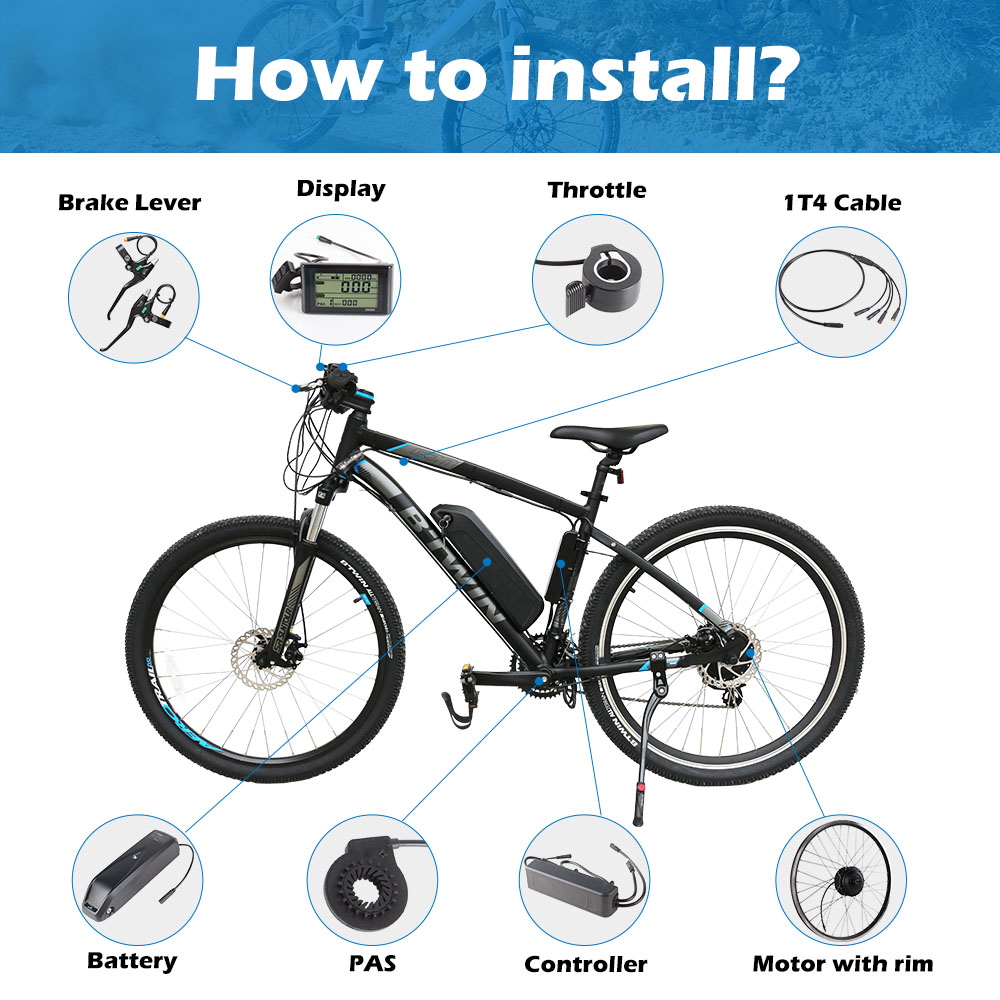

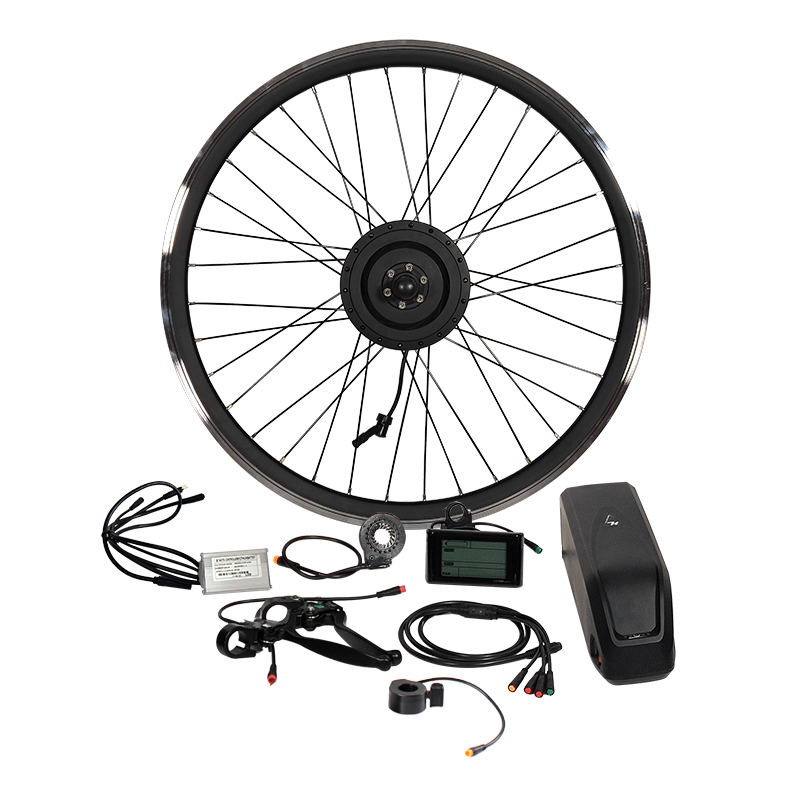

1.What the electric bike kit include?

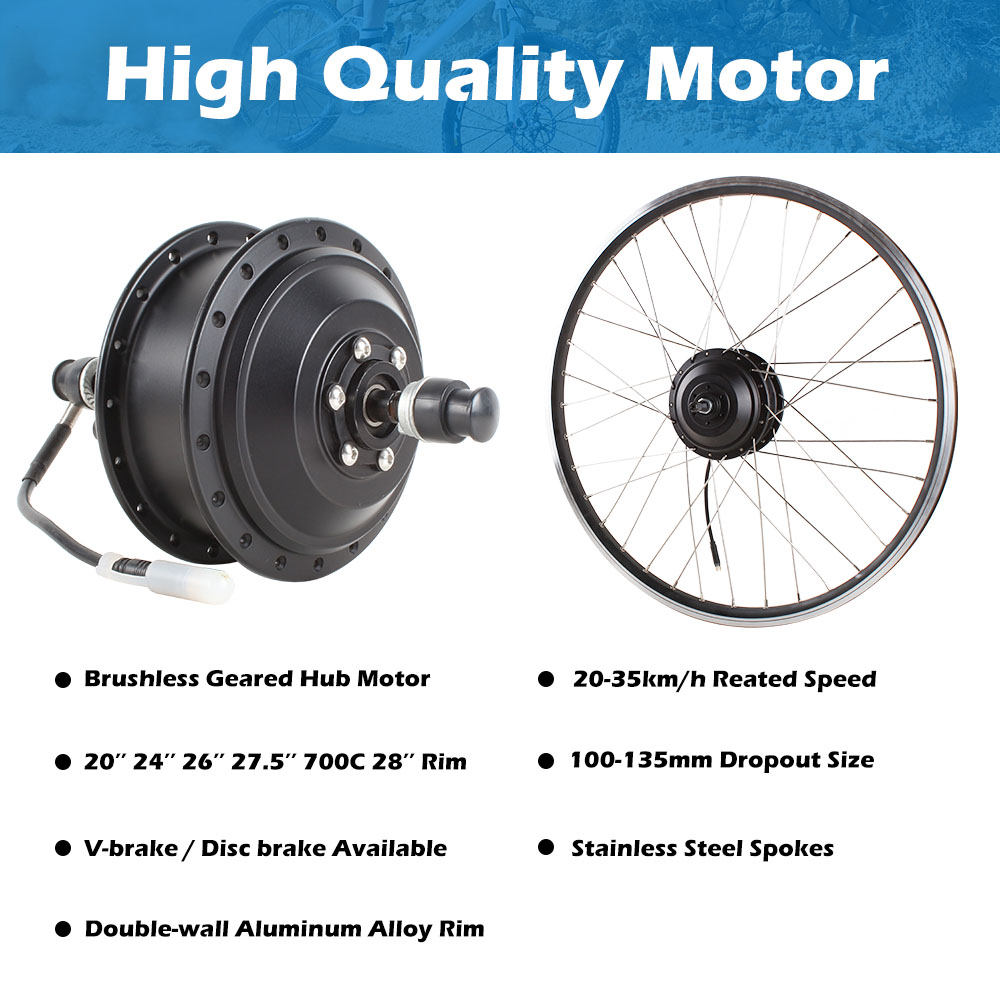

1.1.250w Brushless Geared Hub Motor with
Rim (16'' 20" 24" 26" 700C 28" 29")

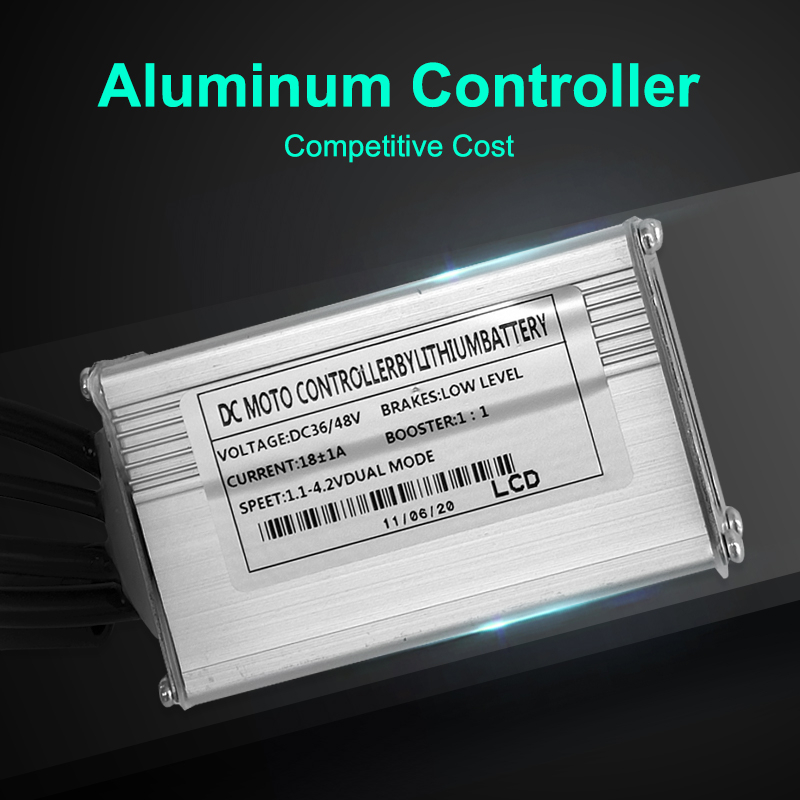

1.2.Aluminium case controller
1.3.Thumb Throttle (Twist Throttle for optional)
1.4. SW900 LCD display(color display for optional)
1.5.Wuxing Brand Aluminum Alloy Brake Levers(brake sensor for optional)
1.6.12 Magnets Pedal Assistant Sensor
1.7. Connecting Cable
1.8.Lithium Battery (Optional)
2. Hub motor kit feature
• Apply to electric bicycle
rear and front wheel with 100-135mm frame dropput
• Suitable for
20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless geared hub motor, 24V or 36V
available, top speed from 20 km/h to 25 km/h.
• SW900 LCD display to show battery power, time, speed,
mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling
while driving electric bike
3. Motor parameter
Rated
voltage | 24V/36V |
Rated
power | 350w |
Motor
type | Brushless
Geared hub Motor |
Controller | 18A,Brushless Aluminum case controller |
Dropout
size | 100-135mm |
Wheel
size | 20'' 24''
26" 27.5" 700C 28" 29‘’ |
Rated
Speed | 20-25km/h |
Rated
Efficiency | >=83% |
Reduction
Ratio | 1:4.4 |

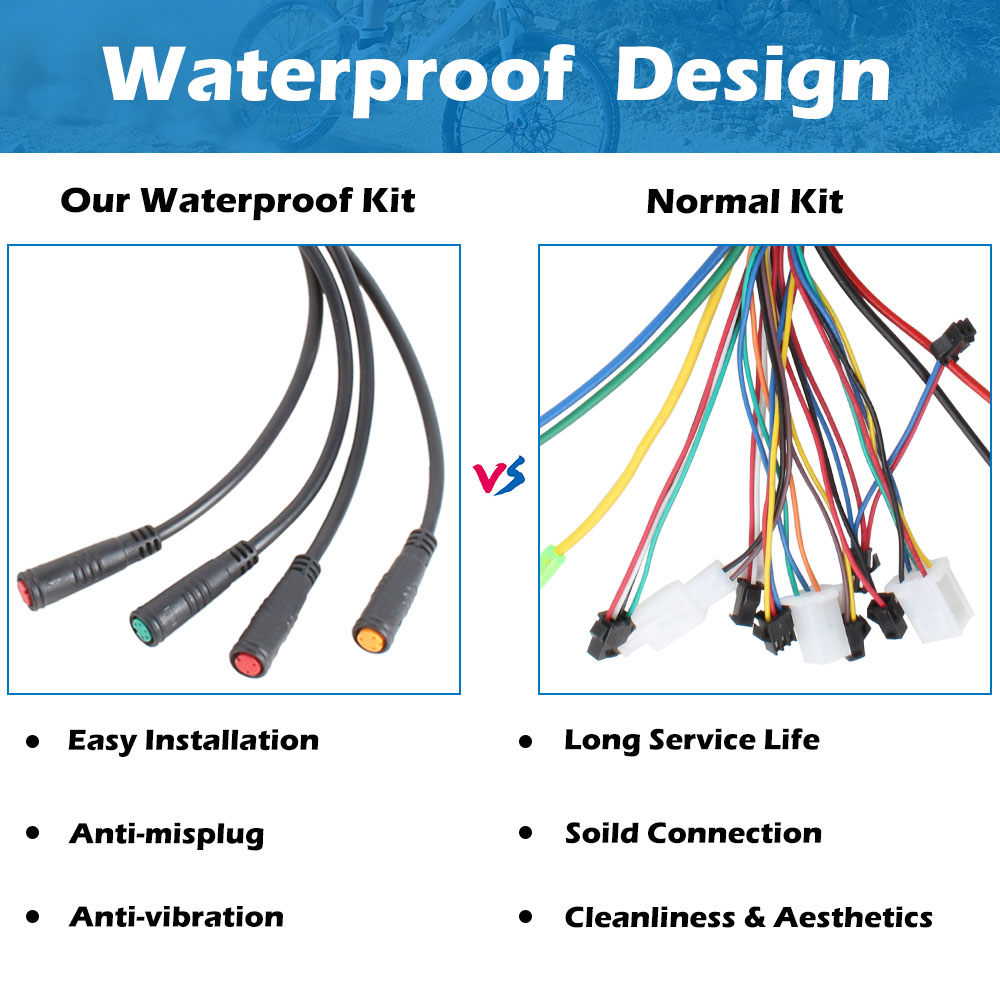

Waterproof
Grade | IP54 |
Noise
(db) | < 50 |

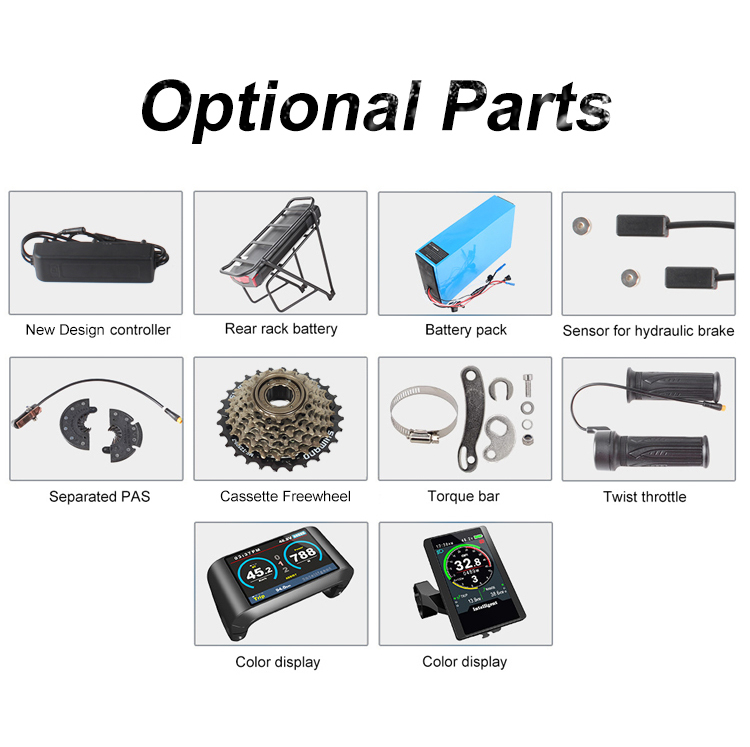

Optional
parts | Freewheel,
Tyre, Head light, Disc brake, etc |
