SPECIFICATIONS
• Apply to electric bicycle rear and
front wheel with 100-135mm frame dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless geared hub motor, 24V or 36V available, top speed from
20 km/h to 25 km/h.
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike

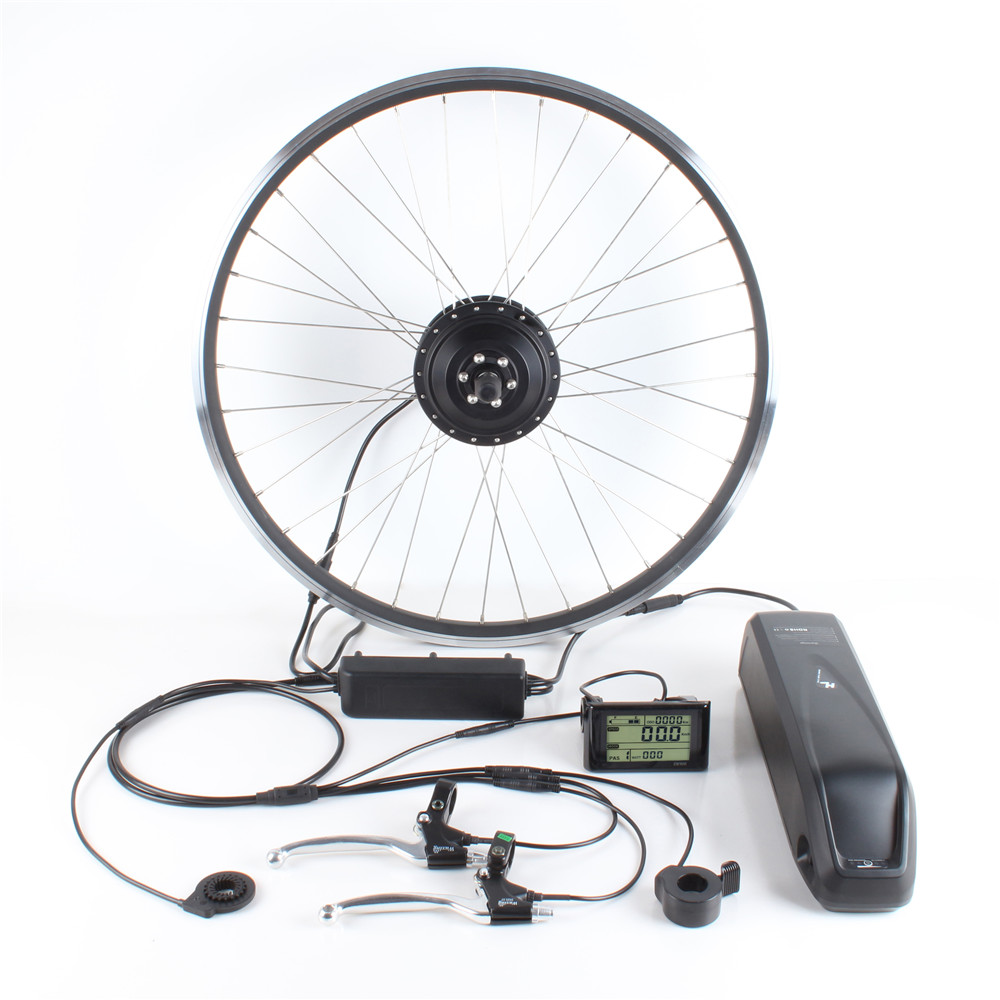

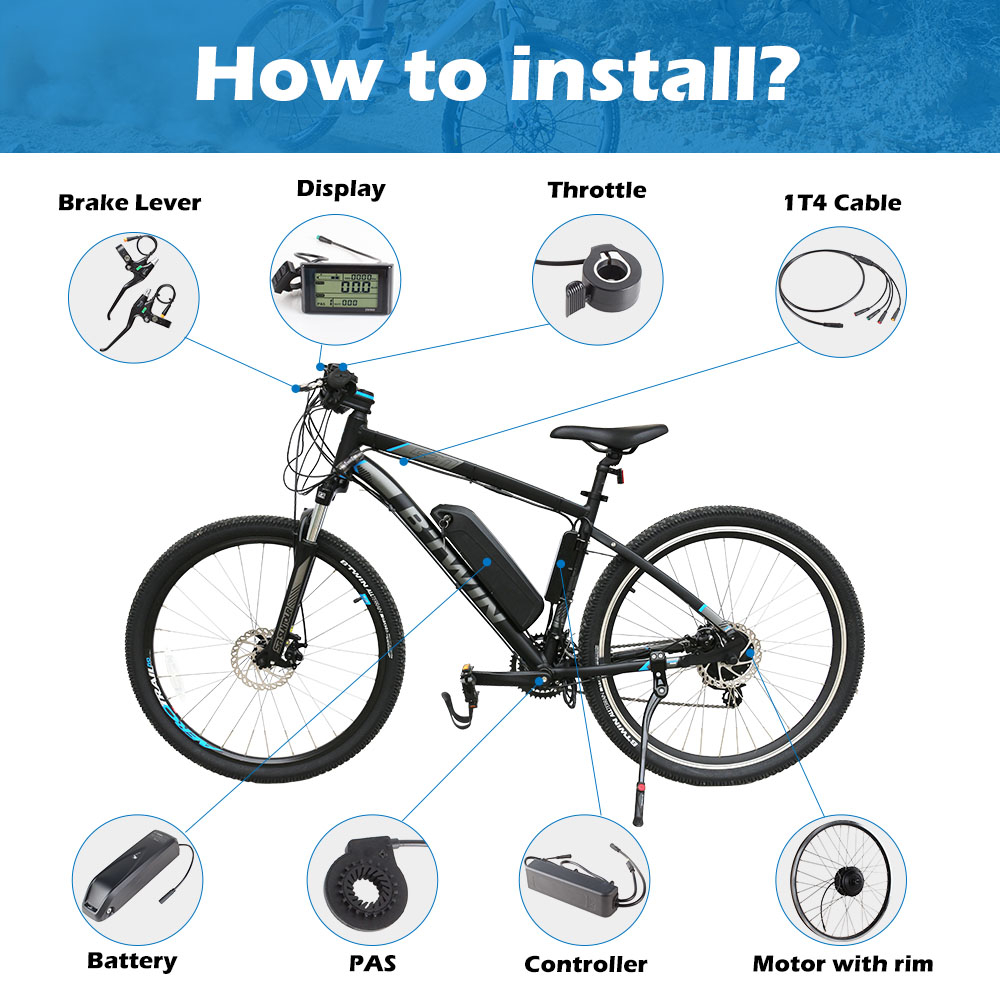

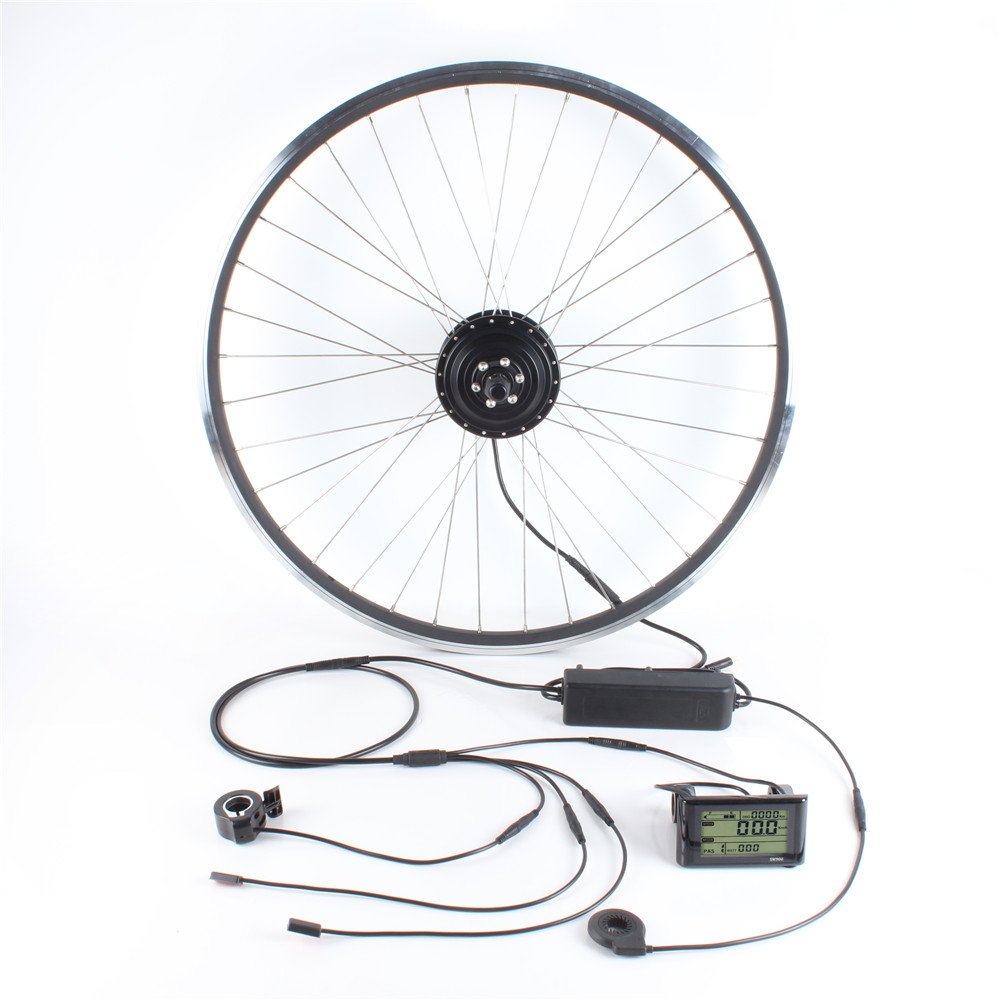

1.What the
electric bike kit include?

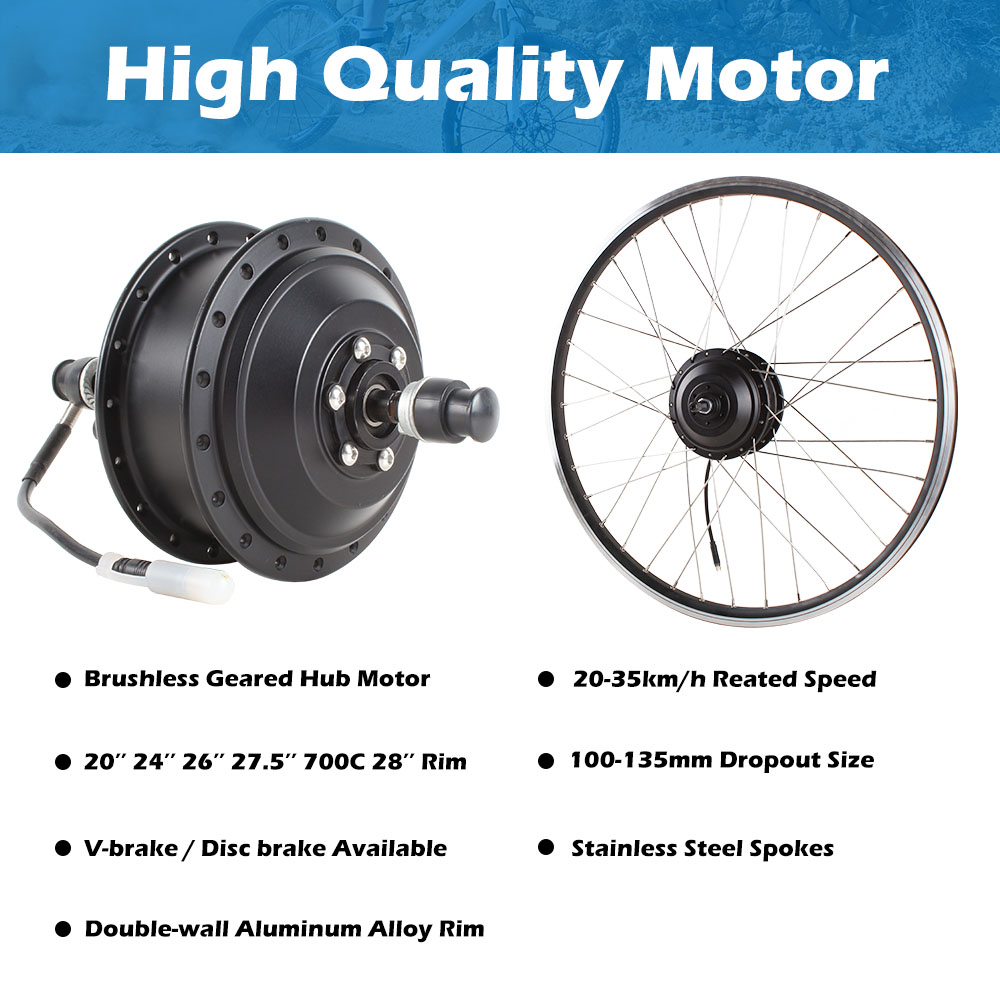

1.1. 250w Brushless Geared Hub Motor
with Rim (16'' 20" 24" 26" 700C 28" 29")

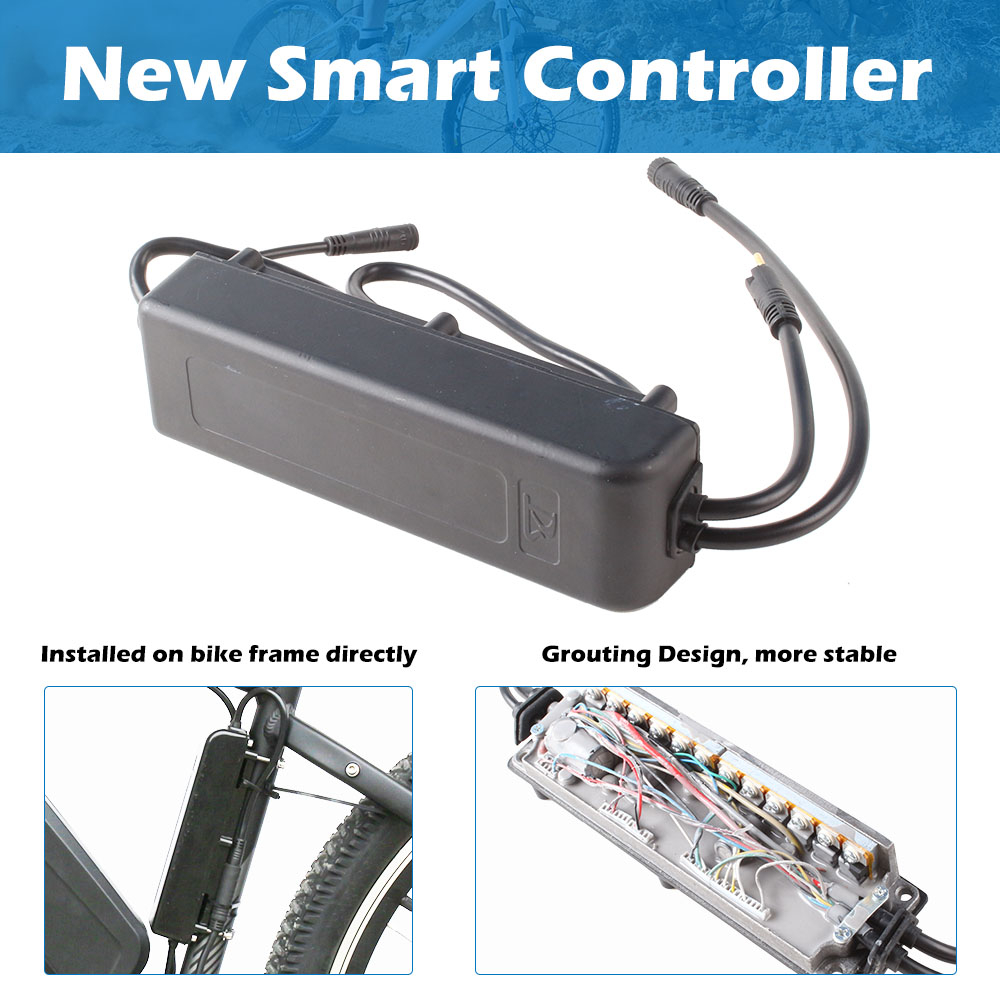

1.2. New design smart controller
1.3. Thumb Throttle (Twist Throttle for optional)
1.4. SW900 LCD display(color display for optional)
1.5. Wuxing Brand Aluminum Alloy Brake Levers(brake sensor for optional)
1.6.12 Magnets Pedal Assistant Sensor
1.7.Connecting Cable
1.8.Lithium Battery (Optional)
2. Hub motor kit
feature
• Apply to electric bicycle rear and
front wheel with 100-135mm frame dropput
• Suitable for
20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless geared hub motor, 24V or 36V available, top speed from
20 km/h to 30 km/h.
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike
3. Motor
parameter
Rated
voltage | 24V/36V |
Rated
power | 250w |
Motor
type | Brushless
Geared hub Motor |
Controller | 15A,Brushless
Smart Controller |
Dropout
size | 100-135mm |
Wheel
size | 16'' 20''
24'' 26" 27.5" 700C 28" 29‘’ |
Rated
Speed | 20-25km/h |
Rated
Efficiency | >=83% |
Reduction
Ratio | 1:4.4 |

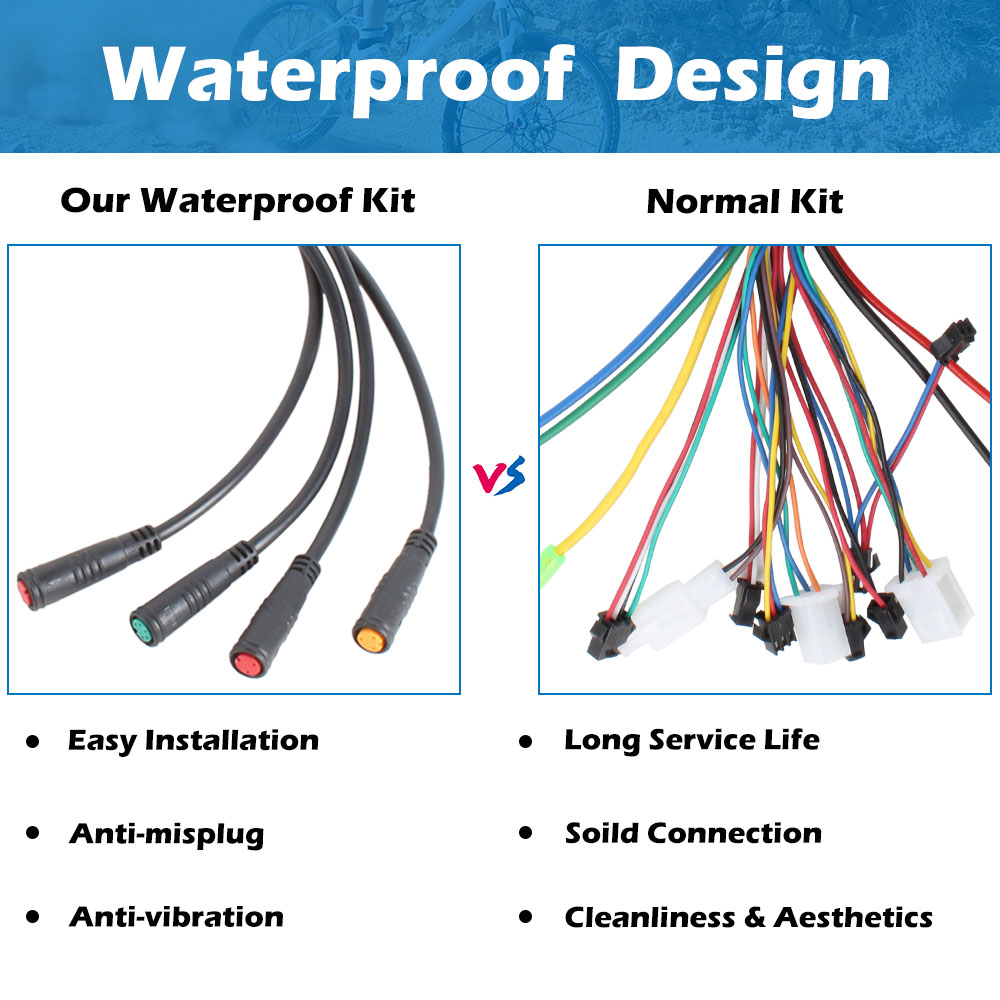

Waterproof
Grade | IP54 |
Noise
(db) | < 50 |

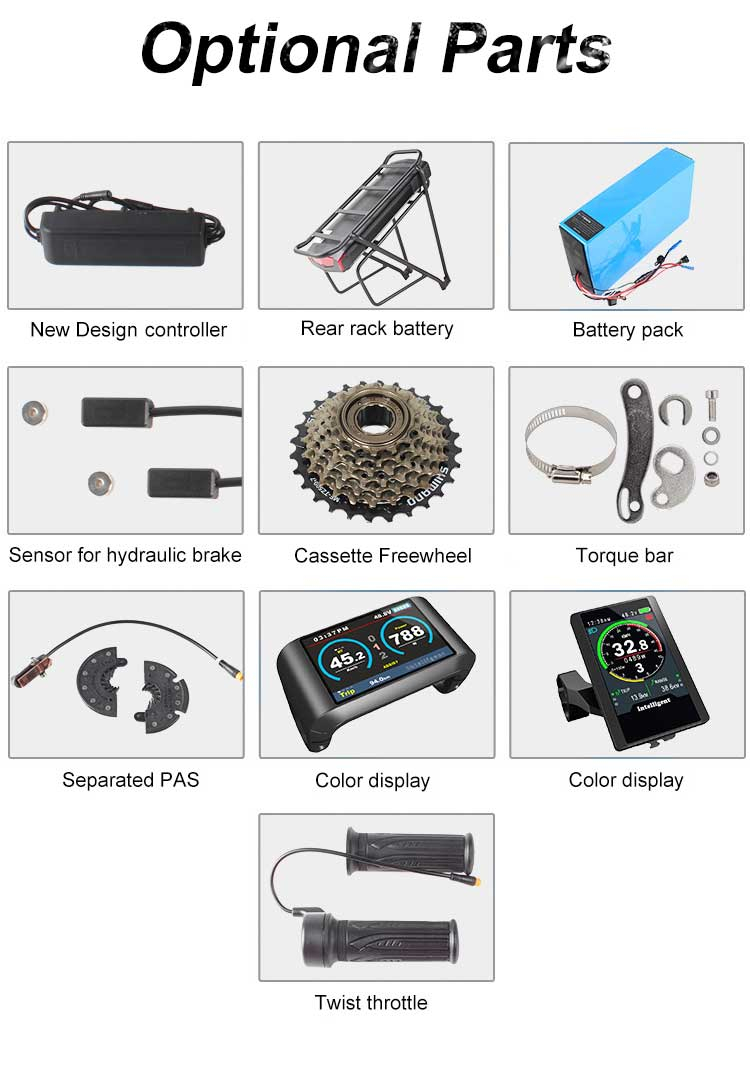

Optional
parts | Freewheel,
Tyre, Head light, Disc brake, etc |
