SPECIFICATIONS
• Apply to electric bicycle rear and
front wheel with 100-135mm frame dropput
• Suitable for 20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless geared hub motor, 24V or 36V available, top speed from
20 km/h to 25 km/h.
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike

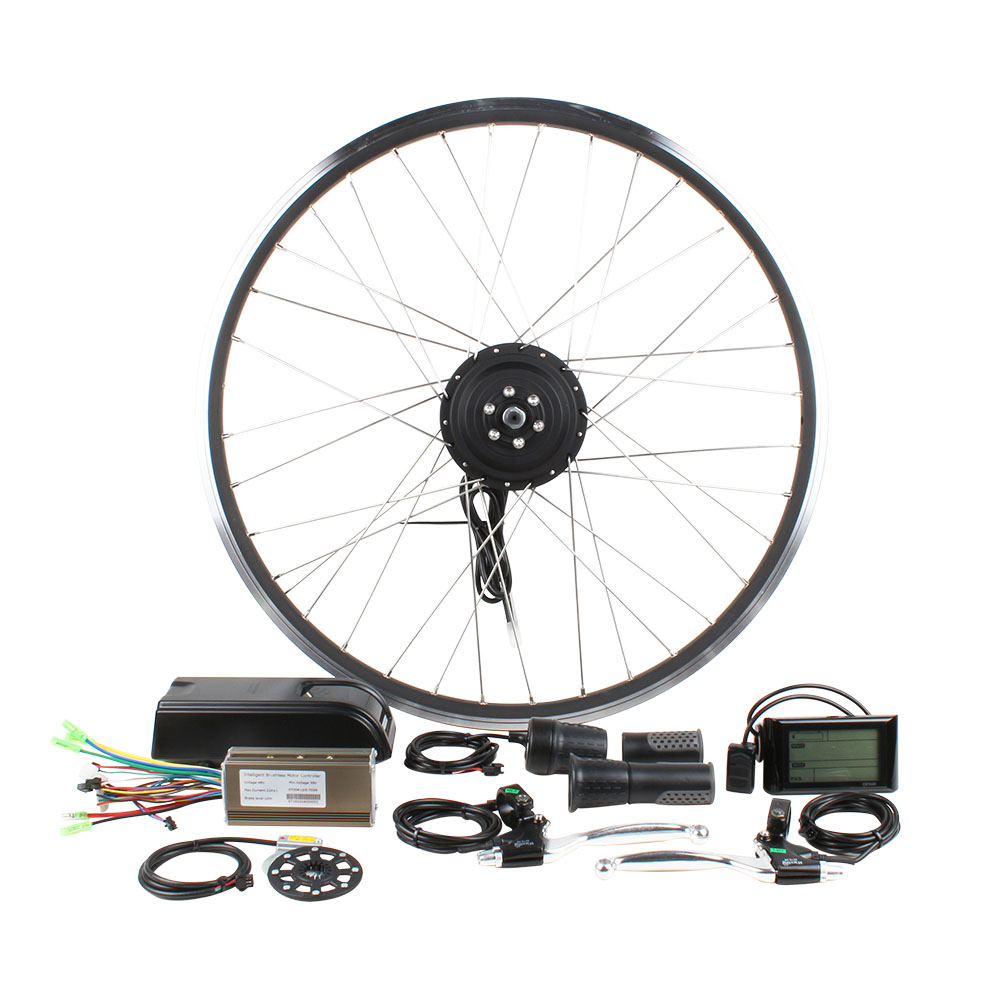

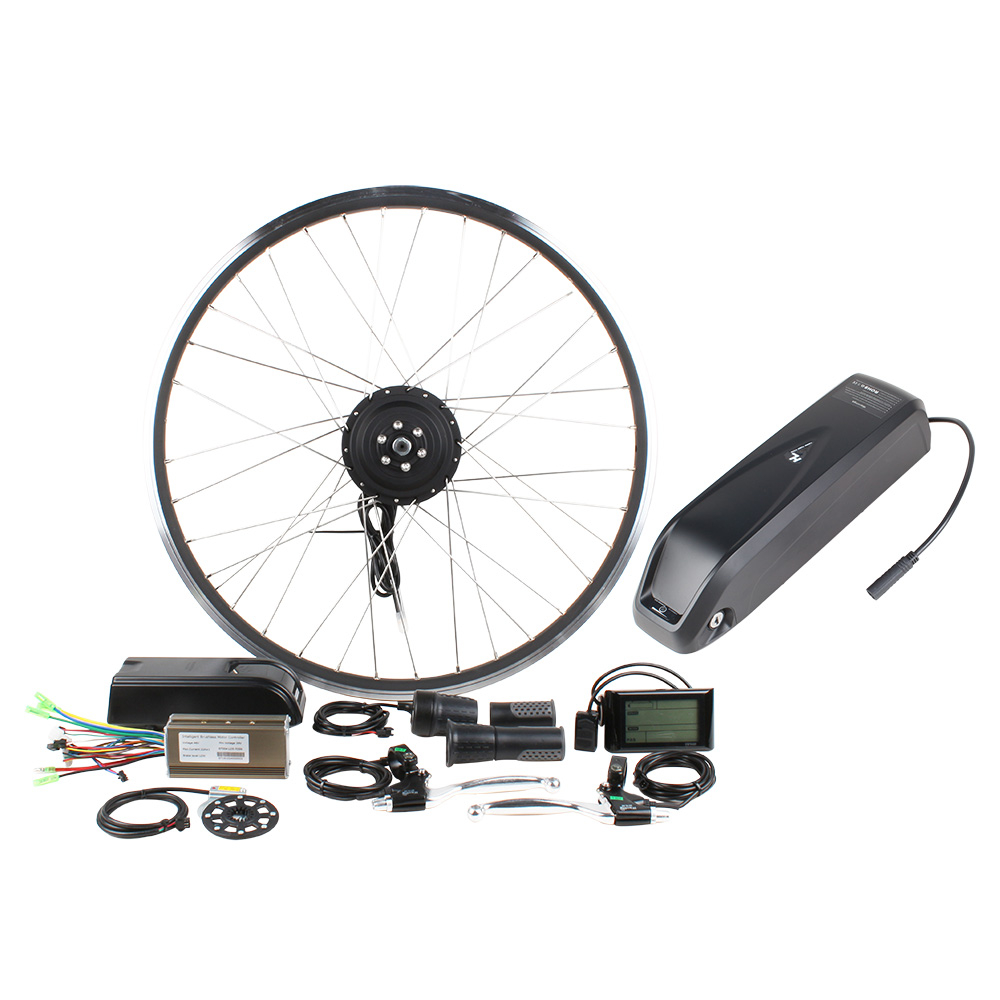

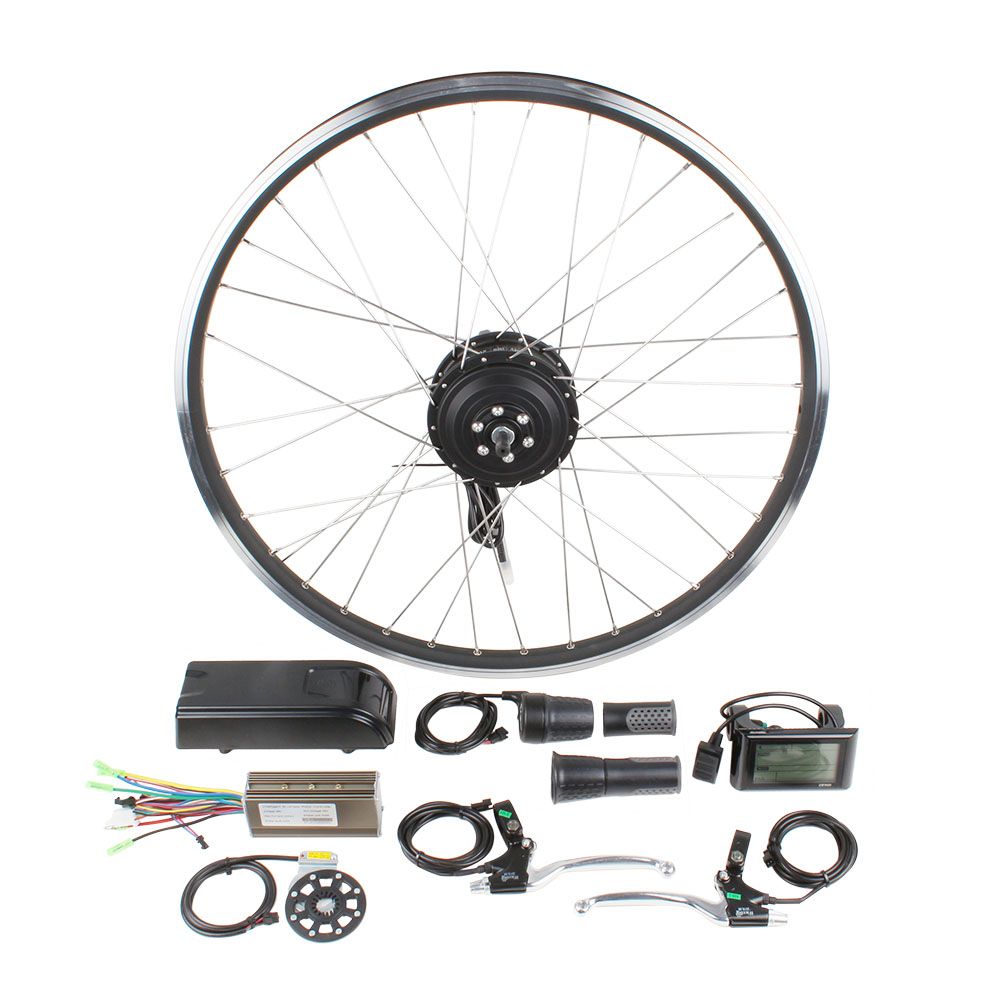

1.What the electric bike kit include?
1-250w Brushless Geared Hub Motor with
Rim (16'' 20" 24" 26" 700C 28" 29")
2-New design smart controller

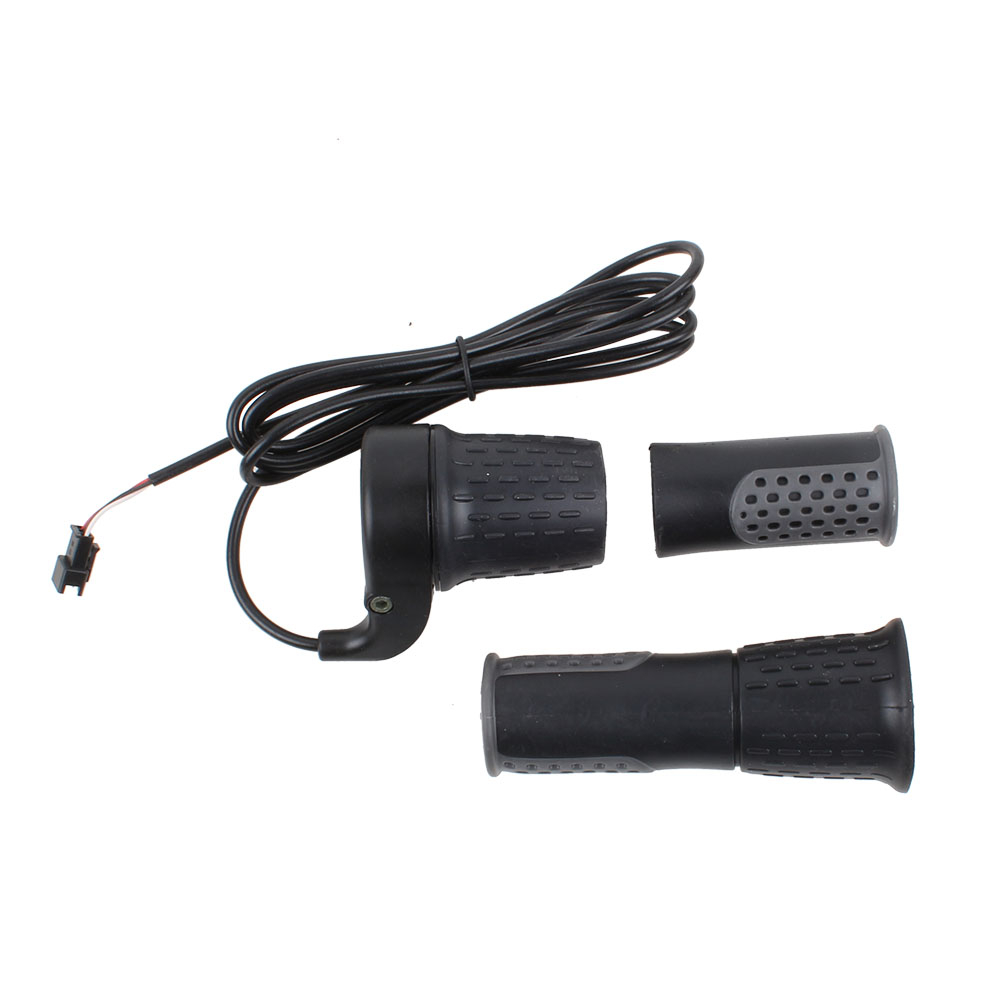

3- Thumb Throttle (Twist Throttle for optional)

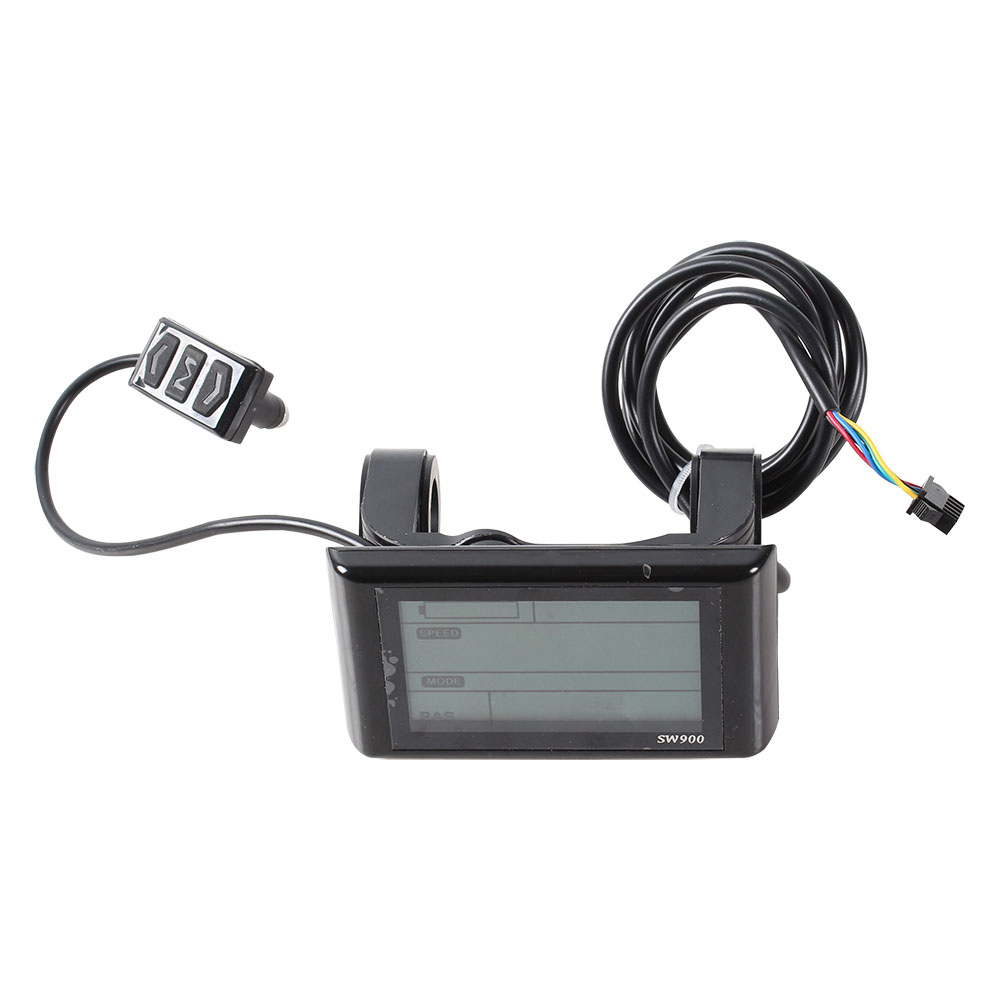

4-SW900 LCD display(color display for optional)
5-* Wuxing Brand Aluminum Alloy Brake Levers(brake sensor for optional)

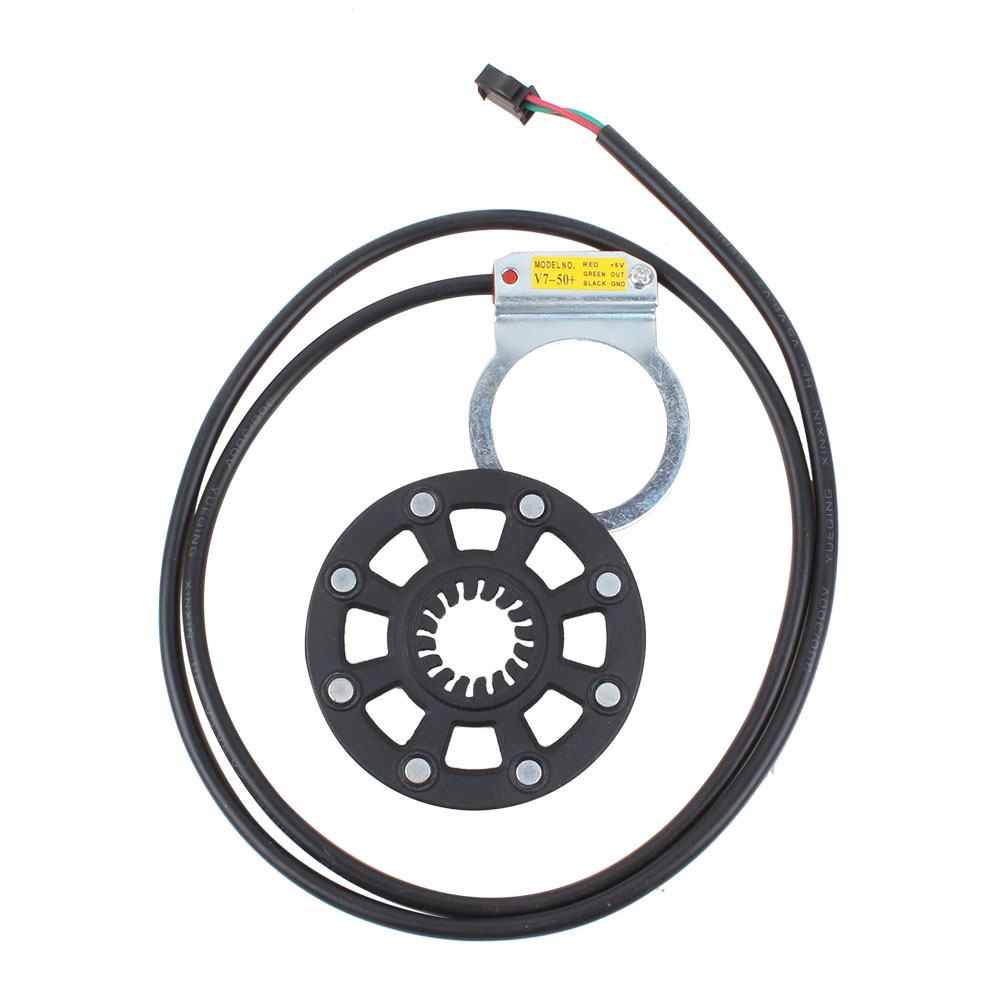

6-12 Magnets Pedal Assistant Sensor
7-Connecting Cable
8- Lithium Battery (Optional)
2. Hub motor kit feature
• Apply to electric bicycle rear and
front wheel with 100-135mm frame dropput
• Suitable for
20in/24in/26in/27.5in/28in/29in/700C bike
• High quality brushless geared hub motor, 24V or 36V available, top speed from
20 km/h to 25 km/h.
• SW900 LCD display to show battery power, time, speed, mileage and gears
• Pedal Assistance System (PAS): let you enjoy cycling while driving electric
bike
3. Motor parameter
Rated
voltage | 24V/36V |
Rated
power | 250w |
Motor
type | Brushless
Geared hub Motor |
Controller | 15A,Brushless Aluminum case controller |
Dropout
size | 100-135mm |
Wheel
size | 16'' 20''
24'' 26" 27.5" 700C 28" 29‘’ |
Rated
Speed | 20-25km/h |
Rated
Efficiency | >=83% |
Reduction
Ratio | 1:4.4 |
Waterproof
Grade | IP54 |
Noise
(db) | < 50 |
Optional
parts | Freewheel,
Tyre, Head light, Disc brake, etc |
